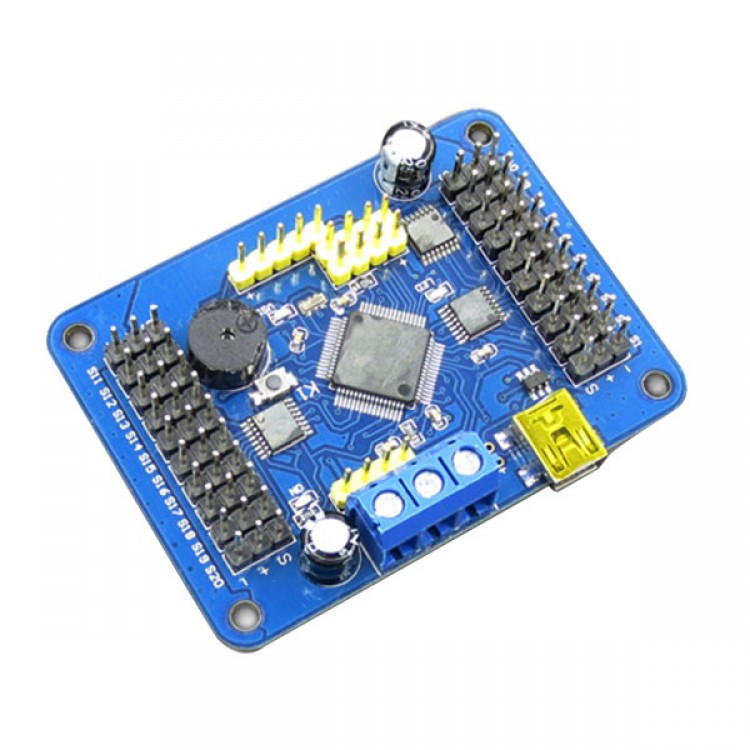

• Arduino USB 20 Channel Servo Control Board Overcurrent Protection Supprot PS2 Handle for Robot Platform

Arduino USB 20 Channel Servo Control Board Overcurrent Protection Supprot PS2 Handle for Robot Platform

Availability: In stock, usually dispatched in 1 business day

  • Price:$29.48
  • Price in reward points: 295 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $28.89 $28.30 $27.42 $26.24 Contact US
Quantity:

Arduino USB 20 Channel Servo Control Board Overcurrent Protection Supprot PS2 Handle for Robot Platform

Description:

- Signal isolation, with servo protection, specially used for robot
- Support PS2 handle, support MP3 voice module
- Support newest Windows 8 system
- Size: 63.5*43.5mm
- Install size: 55*35.5mm
- USB interface: support
- Simultaneous control servo num: 32
- Storage space: 16M
- Controlling precision: 1us
- One upgrade bag each month: yes
- Servo signal isolation: yes
- Low voltage alarm: yes
- PS2 handle: support
- External connecting singlechip machine: support
- Windows 8 driver:  support
- Windows 7 driver: support
- Windows xp driver:  support

New functions added
- With overcurrent protection, can protect all servos, completely solving problem of burn down servos
- Rewrite code (Stability has improved ten times)
- On board 16M mini U disc, can storage thousands of movements group (improve 50 times)
- Release one upgrade bag each month
- Totally support PS2 handle and 32 channel servo control board
- Support wifi wireless control
- Windows, linus, IOS, Android platform support
- PC, phone software has three languages: simplified Chinese, traditional Chinese, English

Specs:
- Servo power supply is seperated from control board power supply, independently supplied power
- Control channel: control 20 channels at the same time
- Communication input: USB or TTL
- Signal output: PWM (0.5us precision)
- Servo drving definition: 0.5us, 0.045 degree
- Baud rate range: 9600 19200 38400 57600 115200 128000
- Support servo: Futaba, Hitec and so on, 98% servos
- PCB size: 63*46mm
- Install hole pitch: 55.5*38.5mm
- Storage space: on board 16M U disc

Package includes:
- 20Channel servo control board x 1
- 1.5M mini USB data cable x 1
