Arduino USB 20CH Servo Control Board Overcurrent Ptotection Support PS2 Handle for Robot DIY

Arduino USB 20CH Servo Control Board Overcurrent Ptotection Support PS2 Handle for Robot DIY

Features:
- Support MP3,3-axis obliquity sensor
- Support the new version Windows 10 system
- Signal isolation, with servo protection and support PS2 handle

Functions:
- With over current protection, it can protect all the servo
- If function expansion board is availcble, upgrade and support MP3 and 3-axis obliquity sensor(can detect whether the robot falls, climb up.
- If the Nrf24L01+ wireless module is availcble, support a remote controller to control multiple robots actions at the same time.
- All new code
- Onboard 16M U-disk, you can store tens of thousands of action group
- Fully supports PS2 handle and 32 channels servo control board.
- Support WiFi wireless control (need to buy WiFi module)
- Support windows, Linux, IOS, Android full platform
- Computer, the mobile phone software has simplified Chinese, traditional Chinese, English three languages

Advantage:
Can use computer software to control the robot, or servo. Can simultaneously control 20 servos at the same time, high accuracy (1US), 32bit CPU, the internal integration of USB communication interface, stability and high accuracy.

Specification:
- Independent power supply, Separate servo power supply from control board power supply
- Control channel: simultaneous control  20 channels. (adjustable speed for servo)
- Communication input: USB or serial port (TTL)
- Signal output: PWM (accuracy 0.5us).
- Servo drive resolution: 0.5us, 0.045 deg.
- Baud rate range: 9600 19200 38400 57600 115200 128000
- Support servo: Futaba, Hitec, Hui Sheng, spring, and other servos
- PCB size: 63mm x 46mm.
- Mounting hole spacing: 55.5*38.5mm.
- Storage space: 16M U-disk

Instructions video: Click here
All information: Click here　

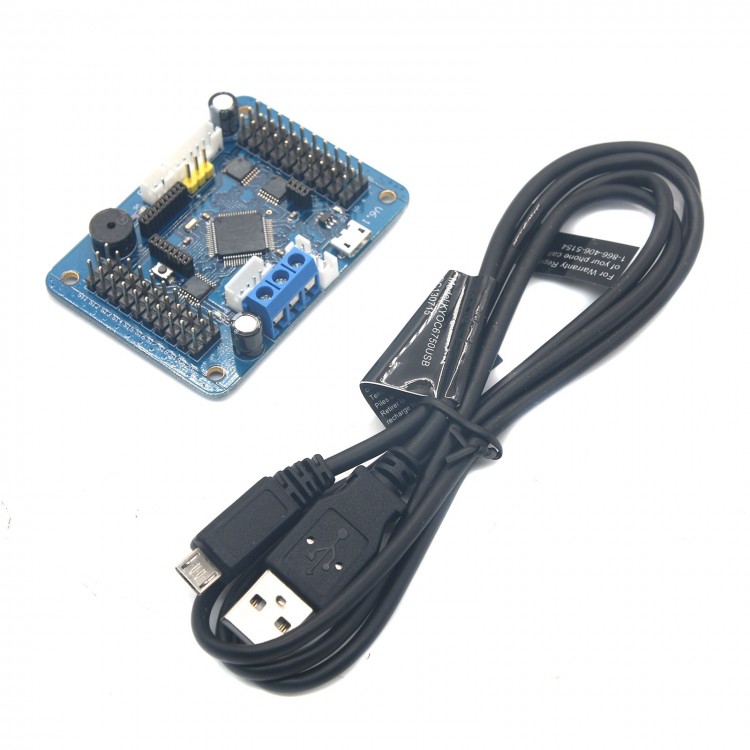

Package Include:
- 1 x 20CH Servo Control Board
- 1 x 1.1M Micro USB data cable
