Arduino V2.0 Digital Commom Button Switch Module for Sensor Shield

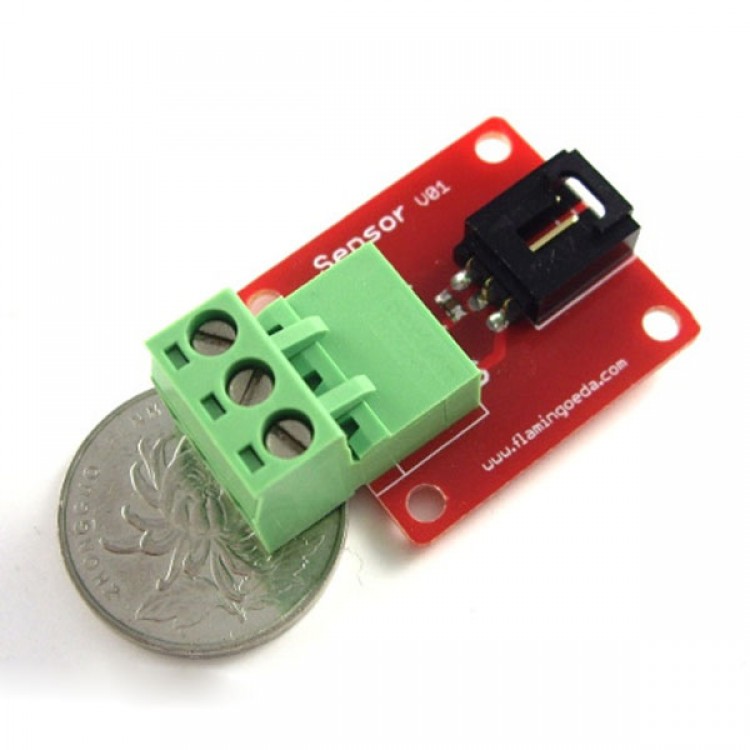

This module is a simple plugable terminal module, you can easily plug some other stuff into this without connect the wire to the terminal every time.With this digital DIY Switch module, you can easily turn them in to your Arduino project.You can do some simple design about it,it support“plug and play”.This module can be used with Arduino Special Sensor Shield V4.0.For most simple sensor module, usually having three poles interface are enough : GND、Power Source and Signal, therefore we have designed this general sensor module.


The left part of this module can connect with the sensor shield through the sensor cable, and the right part of this module can connect with sensor bricks such as infrared reflection switch as following :

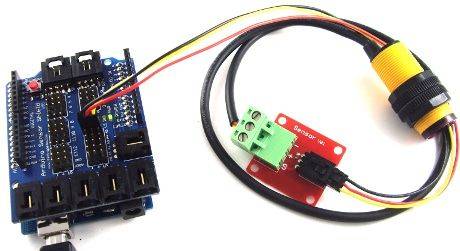

So we can connect these sensor bricks with sensor shield,thus further to connect with Arduino :

When connecting to Arduimp sensor shield,you need Arduino sensor cables (15cm / 30cm / 60cm / 100cm / 200cm optional)
