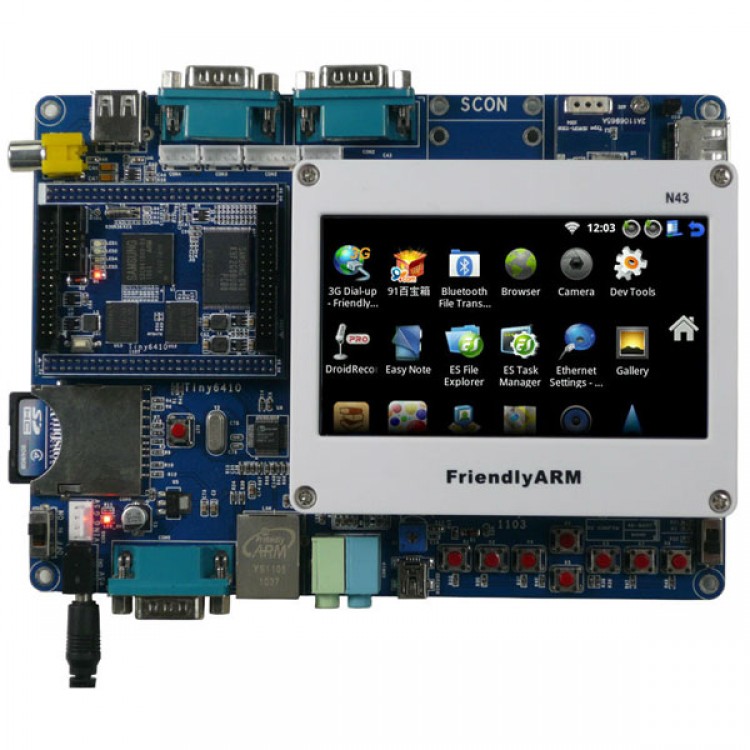

ARM11 Board 256M 2G MCL2 Nand Flash Tiny6410 S3C6410 Android + 4.3" TFT LCD Touch Screen

Features:
- ARM11 Samsung S3C6410A, ARM1176JZF-S, run at 533Mhz ,up to 667Mhz
- 256MB DDR RAM and 2GB NAND Flash
-  LCD/Touch Screen, CVBS/TV, Audio support
- SD card, USB Host/OTG support
- Ethernet, serial port, GPIO
- GPRS/WIFI/GPS/Camera/3G module/USB Bluetooth support (option)
- Linux 2.6.28, WinCE6.0, Ubuntu support
- Support Android 2.3
- Source code provide

Stamp Board Specification
- Dimension: 64 x 50 x12 mm (L x W x H)
- CPU: 533 MHz Samsung S3C6410A ARM1176JZF-S with VFP-Unit and Jazelle (max freq. 667 MHz)
- RAM: 256 DDR RAM, 32 bit Bus
- Flash: 2GB MLC Nand Flash
- Interface: 4 x User Leds, 10 pin 2.0mm space Jtag connector, Reset button on board
- Serial, SPI, USB, LCD, CMOS Camera
- Connector : 2 x 60 pin 2.0mm space DIP connector
- 2 x 30 pin 2.0mm space GPIO connector
- Power Supply: Supply Voltage from 2.0V to 6V

Stamp Board layout description
-  P1: Contain LCD, AD, SDIO2, EINT, USB, TVOUT0
- P2: Serial port, SPI1, I2C, SD Card, AC97 (I2S), System bus
- CON1: GPIO,AD,SPI0,TAVOUT1
- CON2 : CMOS,GPIO
- JTAG : JTAG interface
- Others : 4 User LED, power LED, Reset key

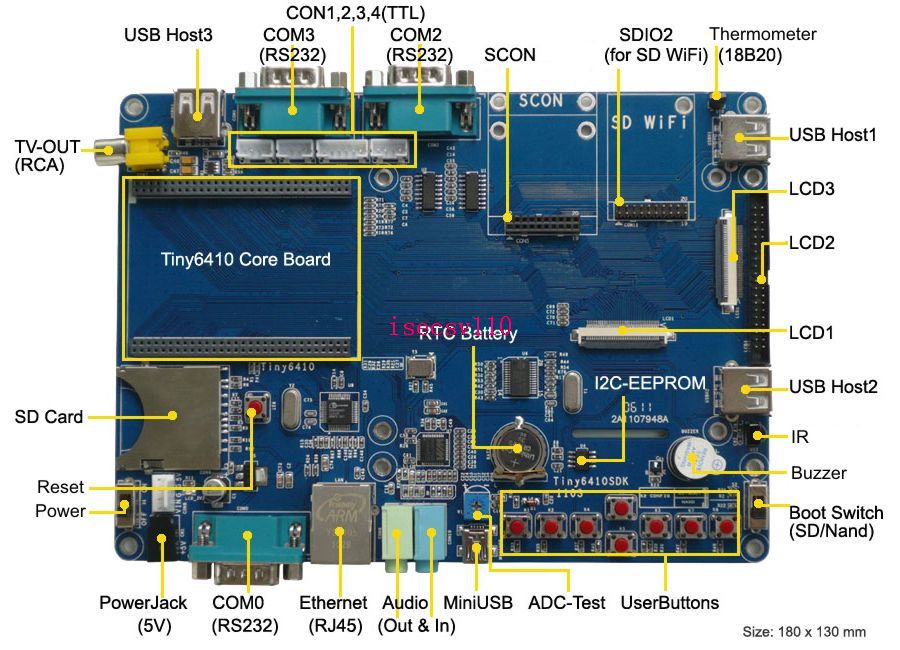

Tiny6410 SDK board Resource:
- CPU:Samsung S3C6410A(ARM1176JZF-S)
- Frequency: Operating frequency 533Mhz, up to 667Mhz
- RAM: 256 MB DDR RAM
- Nand Flash:2GB Nand Flash
- Multimedia: Support for Mpeg4, H.264, H.263, VC1 hardware decoding, up to 30fps @ SD
- 3D: 3D hardware acceleration support
- 2D: Promise to support graphics scaling, rotation, flip
- Debug Port: COM0 + JTAG + USB Slave
- Indicator: 4 x User LED (in the core board), 1 x Power LED
- Test button: 8 x User Buttons, interrupt-style buttons
- USB Slave: 1 x mini USB (OTG floor is not designed to function)
- USB Host: Through the USB HUB chip, to achieve 4 USB Host
- Network Interface: 10/100M MB Ethernet, RJ-45 interfaces
- Audio I/O: Standard two-channel audio input 3.5mm input and output ports
- SD Card: Normal SD card connector
- Serial: 3 x RS232 DB9 serial port, 4 x TTL-level serial port Block
- TV-OUT: 1 x RCA output
- SDIO2 Interface : Mainly used to access SD WiFi module (also includes SPI, I2C interface)
- LCD Interface: 3 LCD Interface Block leads (0.5mm pitch SMT, including seats, seat pin and 2.0mm pitch)
- Buzzer: 1 x PWM control the buzzer output
- IR: 1 channel infrared receiver
- Temperature Sensor: 1 Road DS18B02 Temperature Sensor
- ADC conversion: An adjustable resistor, connected CPU's AD0 channel
- RTC clock: On-board battery backup RTC clock
- Power Supply: 5V
- PCB size: 180 x 130 mm

OS Support
- Windows CE 6
- Linux 2.6
-  Android
-  Ubuntu
