ARM11 S3C6410-A Single Development Board 256m Memory 2G Nand Flash w/ 4.3-inch LCD Screen

Forlinx OK6410 Core Board Resources

 CPU Samsung S3C6410 Processor,ARM1176JZF-S,Clock
 Memory 256MB
 FLASH 2G NANDFLASH
 Clock 12MHz,48MHz,27MHz,32.768KHz clock source
 Voltage DC 5V
 Interface Gold plated B2B connectors
 Temperature -20~ 75°c gureenteen, EMC test passed.

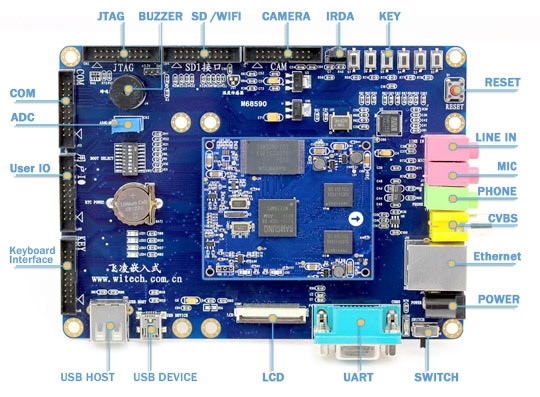

Base board


OK6410 Base Board Resources

Reset One Reset key with dedicated chip, stable and reliable
DIP switch Boot options, using 8-bit DIP switch.
Serial

Four serial ports: one 5-line serial port with DB9 female, three 3-line (3.3V TTL)

with 2.0 X 20 pins.

Ethernet

One 100Mb Ethernet, using DM9000AE with connection and transmition status

 indicators.

USB HOST One USB HOST, support USB1.1 protocol,used for mouse and U disk etc.
USB OTG

One USB Slave,support USB2.0 protocol,using mini-USB socket,can be used

 for PC connection.

SD card One high-speed SD socket, used for SD Memory and SDIO functionality.
WIFI One WIFI expension interface
Audio

Three 3.5mm standard stereo audio jacks, one for headphone audio output,

 and one for microphone input, and one for line input.

LCD

Touch panel support 4-line resistor, LCD support 3.5, 4.3,5.6, 7, 8 inches

TFT LCD. and 10.4 inches LVDS.

Camera

One CMOS camera,support ITU-R BT601/656 8-bit mode, using 10X2 pin connector,

support varies USB cameras.

RTC  Internal Real Time Clock, with backup battery.
JTAG  One JTAG interface,using 10x2 pins connector.
Temperature Sensor  One one line temperator sensor(DS18B20)
Infrad  One Infra-red sensor (38Khz).
LED  Four LEDs
Buzzer  One buzzer with 5V power supply.
Expension ports

 Three 10×2 pins expansion ports, one includes GNDx1, 1DAx1,8-channel AD,

 IOx10, and SPIx1, and another one for 8×8 matrix keyboard, the last one

includes three 3.3V serial port(one 5-line, two 3-line)
