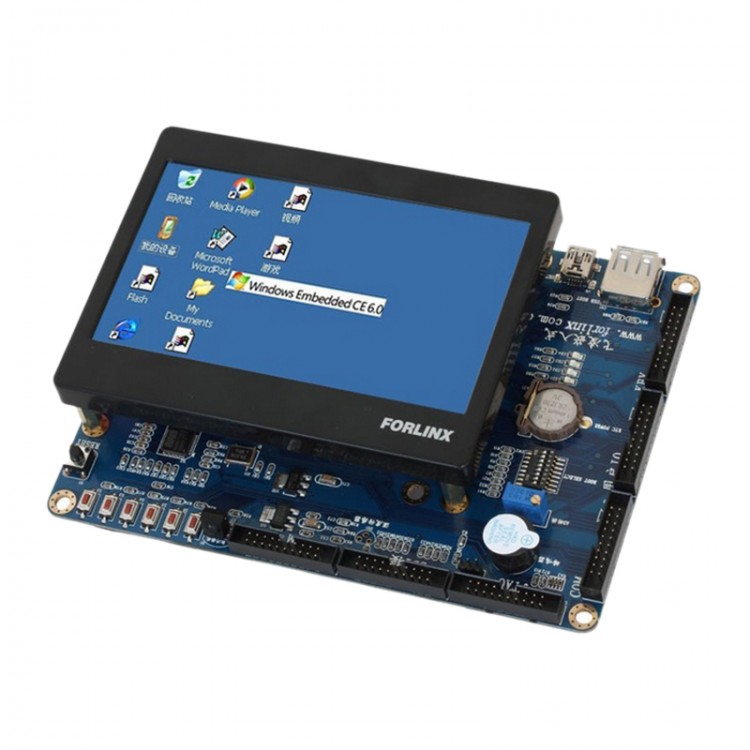

Arm11 S3C6410 OK6410-A Development Board +4.3inch Touch Screen + 14DVD Information USB to Serial

Package included:

- 1 x A development board OK6410-A
- 1 xA 4.3-inch color touch screen ( including a touch pen )
- 1 xOK6410 user CD14 DVD ( no download required )
- 1 xA serial line ( a needle one hole )
- 1 xA network cable ( crossover cable )
- 1 xA USB cableA USB -to-serial
- 1 xA 5V DC power supply
- 1 xA box

Tips: study 6410 , brush writing system and download the program , will be required with an SD card.

Product overview:
After filling the engineer of unremitting efforts, OK6410-A has become the most detailed data, the most perfect function, innovation, most users ARM11 development board of the biggest, the unique filling characteristics of Board-to-board laminated structure (core board and the bottom), brings together the essence of today's mainstream ARM11 platform. In the aspect of application not only provides operating system perfect and common software support, but also easy to program, and the application and demonstration are all open source. OK6410-A has extended interface rich, more than ten kinds of functions can be connected with the WIFI, GPS, GPRS, VGA/TV, camera, LCD, CAN bus, WCDMA 3G module and the keyboard matrix, the extension board. The appearance of small and exquisite, can be directly used as embedded module applied to various systems.

To ensure the performance of S3C6410 development board
- Exclusive launch of 8 Bit hardware error correction algorithm, very good to ensure the reliability of the user operation;
- Power management outstanding: linear power supply and switch power combination, ensure the stability of the system at the same time to reduce power consumption;
- Exclusive support MLC 2G Nand, using MLC Nand can greatly increase the capacity and price is the main storage medium, the electronic device, the technology is especially suitable for product users;
- High speed PCB design: the consideration of signal integrity, reasonable use of blind and buried vias, do key signal isolation, as long as the mechanism as well as the crosstalk and reflection of military considerations, plate making process;
- The strong dust, vibration, high and low temperature (° -20 to +70 °) and other industrial environment test;

Ensure the S3C6410 development board application
Support WinCE, Linux, Android system a programmer, the host can be the perfect support for Windows 2000, Windows XP, Windows7 and other mainstream operating system;
The most abundant accessories: support WIFI, GPS, GPRS, 3G, VGA/TV, camera, LCD screen and other common parts, exclusive support for CAN, RS485, matrix keyboard selection module, power management, and provide the corresponding driver program and application program;
Constant software updates: operating system including Linux, WinCE, Android, will continue to upgrade, we will provide the most stable version of the software, and application of routine of the most abundant, and its source code is open, users can freely download;
Supporting information by filling engineer elaborate tutorials and manuals. The first full graphical guide and video on form, trying to clear hierarchy, content rich, vivid and easy to understand;
Feiling provide perfect after sale service for customers, including the development of plate technology solutions and product quality assurance.

Application:
Suitable for high-end consumer electronics, industrial control, vehicle navigation, multimedia terminal, electronic payment terminal, PDA, embedded training, individual learning.


Hardware parameters:
OK6410-A development board is the structure of core board and the bottom of the. The core plate of high quality gold plated connector is connected with the bottom through.
The core board resources
CPU Samsung S3C6410 processor, the kernel of ARM1176JZF-S, frequency 533MHz/667MHz
Memory comes standard with 256M bytes of DDR memory (optional)
FLASH 2G NAND Flash, the exclusive use of 8 bit error correcting technology, ensure the safe storage of information is reliable (optional);
Clock 12MHz, 48MHz, 27MHz, 32.768KHz clock source;
Support 5V voltage supply voltage
Interface with high quality board to board connector, to ensure the long-term operation reliability
Good high and low temperature test temperature range of -20 to 70 range, and the pulse group and surge interference test
Floor resources
Reset a reset button, using special chip reset, stable and reliable
Set the switch dial switch system startup mode, using 8 bit code switch
Serial four serial ports, including a five line RS 232 level serial (DB9 a) and three TTL level (20pin serial 2.0mm spacing socket)
Net export a 100M network interface, using DM9000AE, with connection and transmission indicator
USB HOST a USB HOST socket, supports the USB1.1 protocol, can be inserted U disk, mouse
USB OTG a USB Slave interface, support USB2.0 protocol, using the mini-USB socket, can be connected to the PC
SD card a high speed SD card. SD can realize Memory function and SDIO function
WIFI is a wireless network card (WIFI) interface
Three audio 3.5mm standard stereo audio jack. Including an audio output jack, can be connected with the earphone; a microphone input socket; a line input socket
The LCD touchpad interface supports 4 wire resistive touch panel; LCD interface supports 3.5 inch, 4.3 inch, 5.6 inch, 5.7 inch, 7 inch, 8 inch, 10 inch TFTLCD, exclusive support LVDS LCD screen
Video 1 CVBS output interface
Camera, a CMOS camera interface, support for ITU-R BT601/656 8 bit mode, use the 10X2 pin connector
Real time clock, RTC, with back-up battery seat, the system time after the power is not lost
JTAG is a JTAG interface, using 10X2 pin connector
A temperature sensor interface 1 single line digital temperature sensor interface (DS18B20)
The infrared module, an infrared module
The LED lamp four LED
A buzzer buzzer
User IO 3 10 × 2 pin expansion port. A 1 GND, 1 DA, 8 AD, 10 IO, 1 SPI. A used to extend the 8 * 8 matrix keyboard, another can connect 3 TTL level serial and 6 IO port, the 3 serial ports, including 1 five line and 2 line three serial port

OK6410 hardware special instructions
Connector using generic OK6410-A spacing of 0.8mm gold-plated connectors, widely used in the industrial sector. Its excellent stability can be fully tested in many projects to undertake in flying. And the other design 2.0mm pin connector plug the number is limited, generally only used for the assessment board. In addition, OK6410 connector can realize full welding machine, prevent weld condition. While the 2.0mm pin only by manual welding, not mass production and easy.
OK6410 core board core plate leads to 320 pins, including almost all IO and XM0 bus, can meet a variety of extension and application needs, to maximize the capacity of 6410. For simple applications, pin can be connected only need, keep the other part. "The system bus will affect the stability of the system", is a groundless statement. According to this logic, will product system using bus expansion chip to extend the interface instability, that contrary to. The core plate pin is too small will lead to integration, poor expansion.
That is, the core plate as a level two power module, the power input range minimum core board, input voltage range is meaningless.
Above the LCD screen in a core board OK6410-A LCD screen, out of core board from the impact of external force protection design considerations, and the LCD screen and the base plate with screws, convenient assembly and disassembly. This is the most common way to design the actual project.
OK6410-A of the floor can be fixed 3.5, 4.3, 5.6 inch LCD screen, it can be clearly seen in the products we offer in the picture.
For the 6410 processor is only a LCD controller, the so-called 3 LCD interfaces in the same time can only achieve a road show, another two pure decoration. We use the most general form of interface, can meet the needs of various types of LCD screen.
Schematic diagram of core board to provide PADS and PDF two format diagram, floor is Protel schematic diagram and the PCB wiring diagram.
RAM provides 128M and 256M two versions, the user can freely choose according to the needs, to develop more targeted.
Flash S3C6410 processor maximum support to 8bit error correction, can fully meet the OK6410 development board using UOM and UOE two Flash error requirement. And the use of certain manufacturers of UOE need 12bit error correction algorithm, the error correction range S3C6410 processor has been exceeded. Long term use of UOE can cause data disorder, unstable system.
Serial OK6410 leads to 1 RS232 and 3TTL level of the serial port, serial port for more 232, we provide the professional extension module.
Key OK6410-A provides 6 independent key OK6410-B provides 8 independent buttons, and exclusive support matrix keyboard, 64 button up extra extension. Fully meet the application needs of various key.
GPIO OK6410-A GPIO 32 OK6410-B GPIO 46 Road 6 road, interrupt.
USB HOST OK6410 provides 1 12M full speed USB HOST interface, support for universal USB HUB extension and the mouse, keyboard, U disk and other plug and play function.
NOR Flash OK6410-A core board support NOR Flash extension; OK6410-B support NOR Flash extension and security card expansion.
Dial switch dial switch can be set to 8, 6410 of all startup mode, and other design can only meet 6410 retention boot mode.
Development board power supply using authentication power, authentication information have clear instructions on the power on the label, the user can rest assured that the use of.

Development board can be connected with extension module
Touch screen module
The introduction of high sensitivity, high definition LCD touch solutions. In support of the 3.5 inch, 4.3 inch, 5.6 inch, 7 inch, 8 inch and 10.4 inch TFT LVDS LCD screen.
The 3G module
The 3G module used for ZTE AD3812. Support network: WCDMA/HSDPA/HSUPA:850/1900/2100 (MHz) GSM/GPRS/EDGE:850/900/1800/1900 (MHz).
The highest 7.2Mbps download, upload up to 2Mbps. Support voice calls, Internet telephone calls, send and receive text messages under the state function, support the AT command, interface with traffic statistics for Mini-PCI-Expresscard/34. Convenient your surfing experience lead-free environmental protection, to meet the European RoHS standard operating system support for Windows2000/xp/Vista; Mac; Linux/WindowsCE. Size: 51mm*30mm*4.75mm. With a SIM card interface.
The GPRS module
GPRS exquisite appearance, convenient installation. This module contains five parts: module, antenna, power supply (5V/1A), 15 pin interface line, telephone and serial double male cross serial line. Can realize the GPRS Internet, SMS, sms.
The GPS module
Support two GPS module, a series of GSTAR GS-89M-J is common on the market, another is the GPS module Feiling's own design and production, the main chip for the ET312. Completely open source, can be directly used in project development to achieve global positioning.
SDIO WIFI module
The module design produced by the company, the interface was 2 spacing of double jack; development board end interface for flat base "SDIO interface 2 spacing". The main chip type "WM-G-MR-09". Can realize the wireless network application of high-speed, stable.
Exclusive CAN bus expansion board
CAN is the controller area network (Controller Area Network, referred to as CAN), Germany BOSCH company is famous by the R & D and production of automotive electronics products, and eventually become the international standard. It is the one of the most widely used field bus. The CAN bus protocol which has high reliability and good ability of error detection, and is widely applied to automobile computer control system and the environment temperature is bad, the strong electromagnetic radiation and vibration in industrial environment. It has become a vehicle computer control system and the embedded industrial control LAN standard bus.
OK6410 is a development board products of the same level only supports CAN bus, exclusive Linux system all the source code under the driver and application program!
Exclusive VGA/TV expansion board
OK6410-B development board can be equipped with VGA module, LCD interface. The VGA output resolution of 800 * 600, and support TV output. Exclusive WinCE/Linux system drive and test procedures.
Three wire serial port module
Three wire serial extension board is the company's own design and development of modules, development board interface is a flat 2 spacing. An additional three serial port expansion, ensure the stability of four serial OK6410 work.
Exclusive JLINK-V8 debugger
J-Link is SEGGER company for the simulation of ARM core chip JTAG launch simulator. OK6410 are similar products in the development board, only support the debugger. It can easily debug no operating system under the RVDS program.
Exclusive UCOS-II
UC/OS is a free open source code, compact structure, with real-time operating system kernel can be deprived of. It is designed for embedded application, the vast majority of the code is written in C language. The uC/OS-II has high efficiency, small space occupation, good real-time performance and flexible expansibility, can be compiled to the minimum core 2KB. UC/OS-II has been ported to almost all the well-known CPU. Feiling first transplantation and to provide source code, with a high learning and practical value!
To provide a temperature sensor interface
In the time sequence control Linux, WinCE and other multi task environment is one of the difficulties of programming! Our exclusive DEMO are related, so that you grasp the ARM-LINUX sequential control programming essentials! At the same time to learn the associated technology temperature measurement.
Infrared receiver
As the detection and control methods commonly used in industrial control, receives and analyzes the infrared signal Linux, WinCE and other multi task environment has very strong significance. (infrared emission using ordinary remote controller, we provide all the drivers and application program, you can realize the infrared control complex and remote sensing by it)
Exclusive matrix keyboard
Exclusive use of matrix keyboard controller S3C6410 to realize 4*4 and 8*8 matrix keyboard expansion. Different from the IO scan mode, save CPU largely use the keyboard matrix register, and improve the efficiency of the development, to meet the requirements of various instrumentation equipment extended keyboard. The press plate is designed into the 'two 8*8' and '4*4', flexible configuration, convenient for the different needs of users for product evaluation and application.
