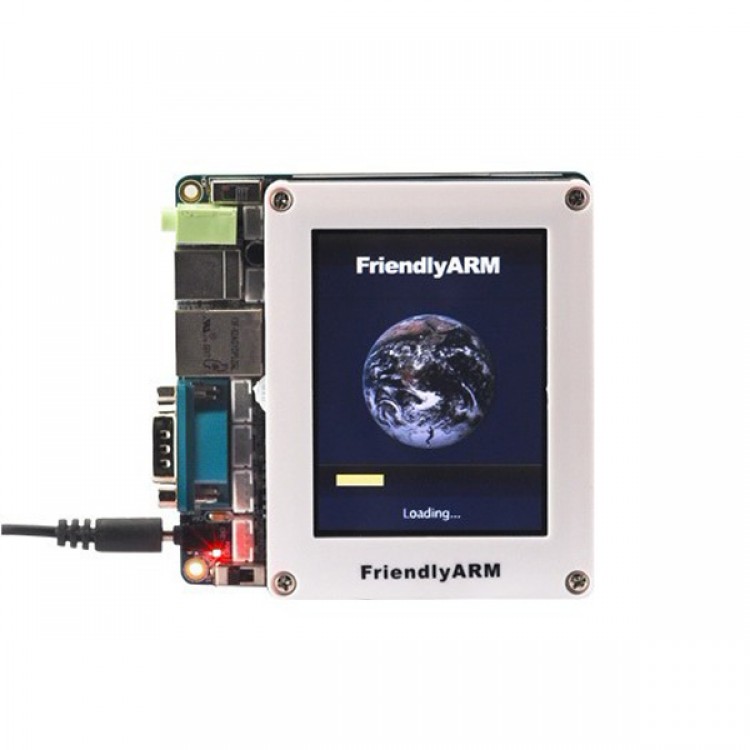

ARM9 Mini2440 S3C2440 Board + 3.5 Touch Screen LCD
  • ARM9 Mini2440 S3C2440 Board + 3.5 Touch Screen LCD

  • SKU:23645
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 12
  • Price:$122.21
  • Price in reward points: 1222
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $119.77 $117.32 $113.66 $108.77 Contact US

ARM9 Mini2440 S3C2440 Board + 3.5 Touch Screen LCD

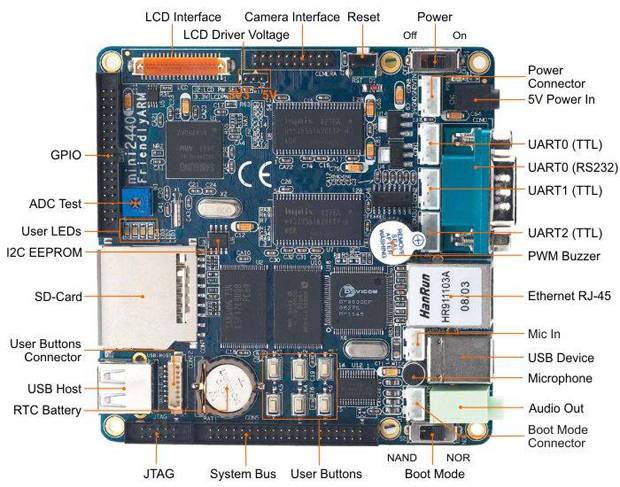

Specifications:

Item
Parameter
CPU
Samsung S3C2440(ARM920T core with MMC, Up to 532MHz)
SDRAM
64Mbyte SDRAM,32 bit Bus
Flash
128M Nand Flash + 2M Nor Flash(BIOS installed)
LCD Support
STN LCD Displays:
●Supports 3 types of LCD panels: 4-bit dual scan, 4-bit single scan, and 8-bit single scan display type
● Supports the monochrome, 4 gray levels, and 16 gray levels
●Supports 256 colors and 4096 colors for color STN LCD panel
●Supports multiple screen size
Typical actual screen size:640 x 480, 320 x 240, 160 x 160, and others
TFT LCD Displays:
● Supports 1, 2, 4 or 8-bpp (bit per pixel) palletized color displays for TFT
● Supports 16, 24-bpp non-palletized true-color displays for color TFT
●Supports maximum 16M color TFT at 24bit per pixel mode
● Supports multiple screen size
Typical actual screen size: 1024x768 640 x 480, 320 x 240, 160 x 160, and others
USB Port
1 USB host and 1 USB device
Audio
Input:Connector+Condenser microphone/Output:3.5mm stereo jack
LAN
110M Ethernet interface (RJ-45 interface)
SD/MMC card
SD card interface and holder
Cemera
All CEMERA signal pin out,20pin camera interface (2.0mm)
UART
1 RS232 serial port, 3 serial ports available through 14pin (2.0mm space) interface
Jtag
standard JTAG interface)
buttons
6 Test buttons
LEDs
4 Status LEDs
I2C bus
AT24C08
AD input
AD input test
PWM  beeper
PWM controlling speaker/buzzer
RTC
Real Time Clock with battery
Expansion
●34pin GPIO expansion connector
●40 pin System bus expansion connector
Power Suuply
+5V
Dimensions
100x100 mm

OS support Linux-2.6.32.2/WindowsCE6/uCos2/2440test


Package included:
- 1 x S3C2440 board (Preload with Linux)
- 1 x 3.5" LCD with Tounc Panel
- 1 x Serial cable
- 1 x Net cable
- 1 x USB cable
- 1 x DC 12V power adapter
- 1 x Parallel port wiggler JTAG emulator(for H-JTAG)
- 1 x DVD-ROM for product reference
