ARM9 TQ2440 Development Board S3C2440 Chip 256MB Nandflash 64MB SDRAM Wince w/7.0 inch LCD

Availability: In stock, usually dispatched in 1 business day

  • Price:$136.95
  • Price in reward points: 1370 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $134.21 $131.47 $127.36 $121.89 Contact US
Quantity:

ARM9 TQ2440 Development Board S3C2440 Chip 256MB Nandflash 64MB SDRAM Wince w/7.0 inch LCD

2440V2 feature:

- CUP: SAMSUNG S3C2440AL, 400MHz frequency (The highest is 533MHz)
- SDRAM: onboard 64MB SDRAM (Standard configuration), 32bit Data bus SDRAM clock frequency up to 100MHz (last running 133MHz)
- Nand Flash: onboard 64MB Nand Flash (Standard configuration)
- Nor Flash: onboard 2MB Nor Flash (The highest up to 8MB)
- CorePower: 1.25V core power, solve CPU heating phenomenon
- Power: core board is 3.3V
- Powerled: 1 core board power indicator light
- Core board interface: DC-2.0 Dual in line
- Size: 37*74 mm

LCD:
- Size: 7 inches
- Display area: 152.4 (H) mm x 91.44 (V) mm
- Display color: 16.7
- Resolution: 800 (H) * 480 * RGB (V)
- Power consumption: 0.825W (typical)
- Contrast: 300:1
- Brightness: 320cd/m2 (Liu Ming)
- Using temperature: -30 degrees C to 85
- Touch screen use times: more than 100000 times
- Response time: less than 10ms
- Comes with two pin interface interface: 40pin interface 0.5 spacing and 50pin thin film line spacing 2.0 spacing;
- 5V power supply, LED backlight
- LCD driver board size: 111mm (V) * 178mm (H)

Package List:
- 1 x 2440 Development Board

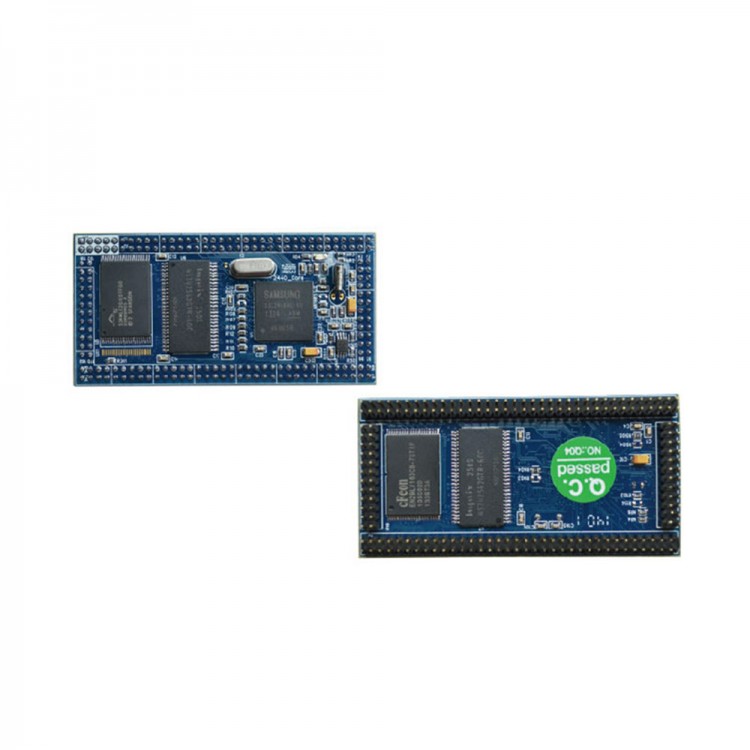

- 1 x 2440 core board
- 1 x 7.0 inch LCD
- 1 x 5V power supply
- 1 x CD
- 1 x Touch pen
- 1 x Seriel cable/net cable/USB download cable/JTAG board
