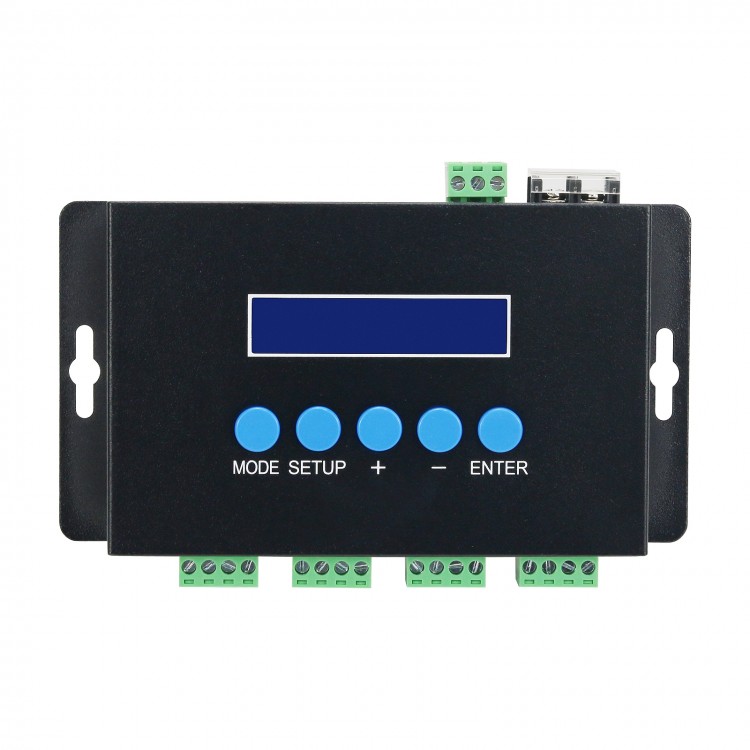

Artnet to SPI DMX Pixel Light Controller LED Light Strip DC5V-24V 4 Channels BC-204

Availability: In stock, usually dispatched in 1 business day

  • Price:$163.97
  • Price in reward points: 1640 Reward Points: 16
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $160.69 $157.41 $152.49 $145.93 Contact US
Quantity:

Artnet to SPI DMX Pixel Light Controller LED Light Strip DC5V-24V 4 Channels BC-204

Product Description:

This Artnet-SPI/DMX Pixel light controller is dedicated to converting the Artnet signal into SPI signal,which is designed for large project with high-density pixel light,such as panel lights,construction's contour lamp,etc.Besides converting Artnet based control protocols into various LED driving IC signal , it also outputs DMX512 signal at the same time,convenient for the connection of different types of led lamp,and to achieve the unified control of all kinds of led lamps in the same project.

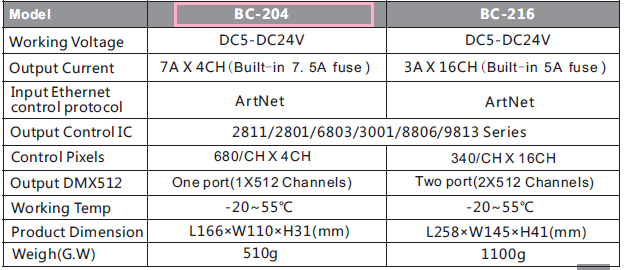

Specification :

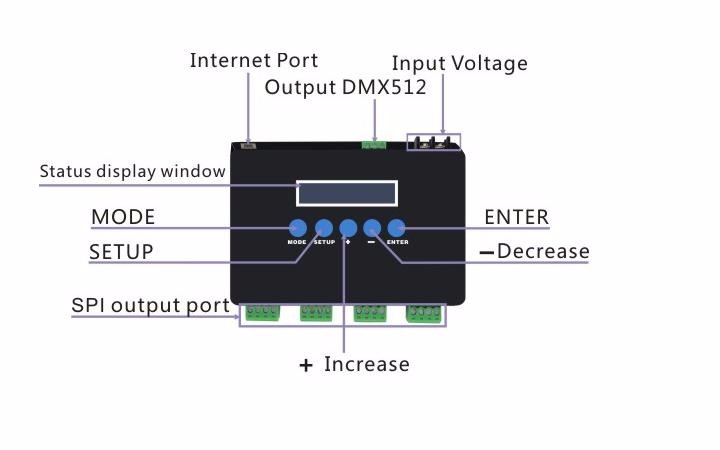

Feature Function:

- With LCD display and built-in WEB SERVER setting interface,easy operation
- Support Ethernet DMX protocal ArtNet,can be expanded to other protocols.
- Multi SPI(TTL) signal output, up to 5440 pixels control.
- Output  DMX512 signal at the same time, convenient for the connection of different types LED lamp.
- Support various LED driving IC, flexible control.
- Support online firmware upgrade
- Adopt DIP plug-in design for the easily-worn parts,Users can repair the damage caused by worng wiring or short circuit
- Built-in test mode,using a networking interface with indicator light,work status is clear when at a glance.

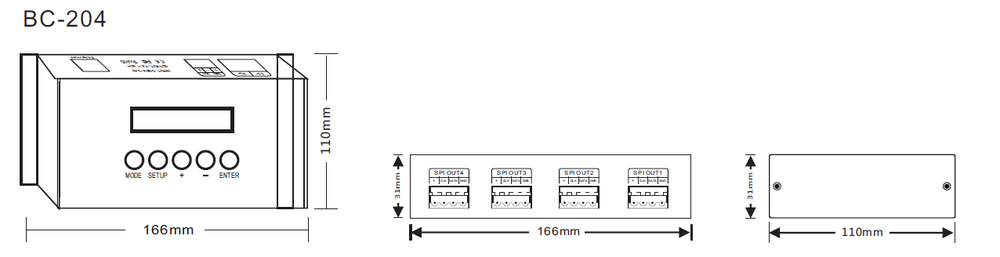

Dimension:

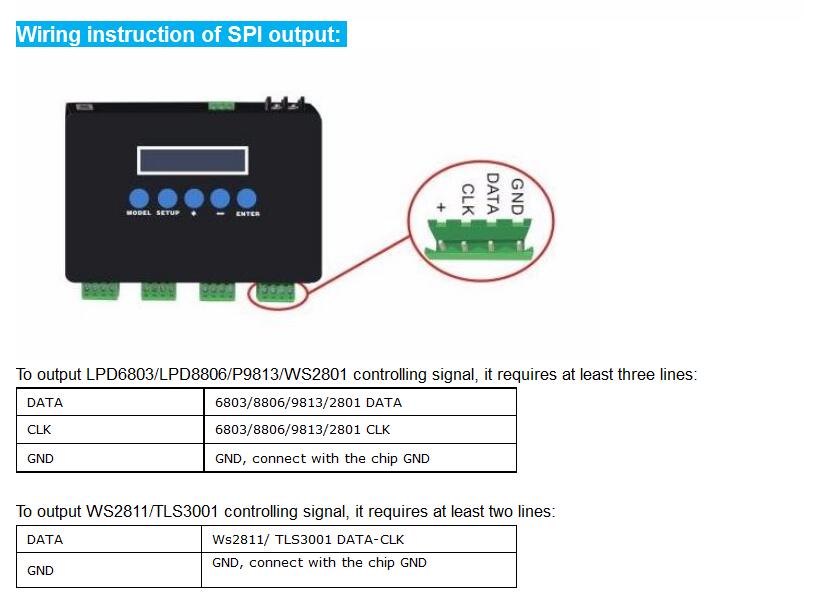

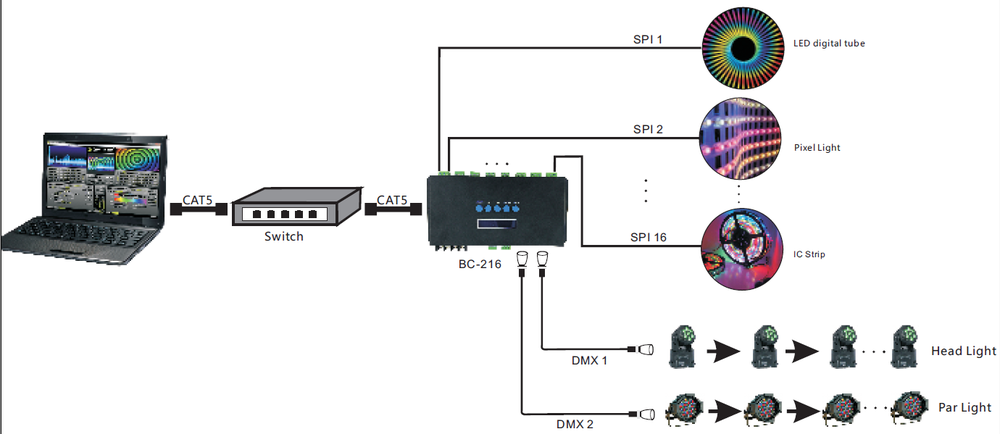

Typical Wiring Schematics:

Package list:

- 1 x Light Controller
