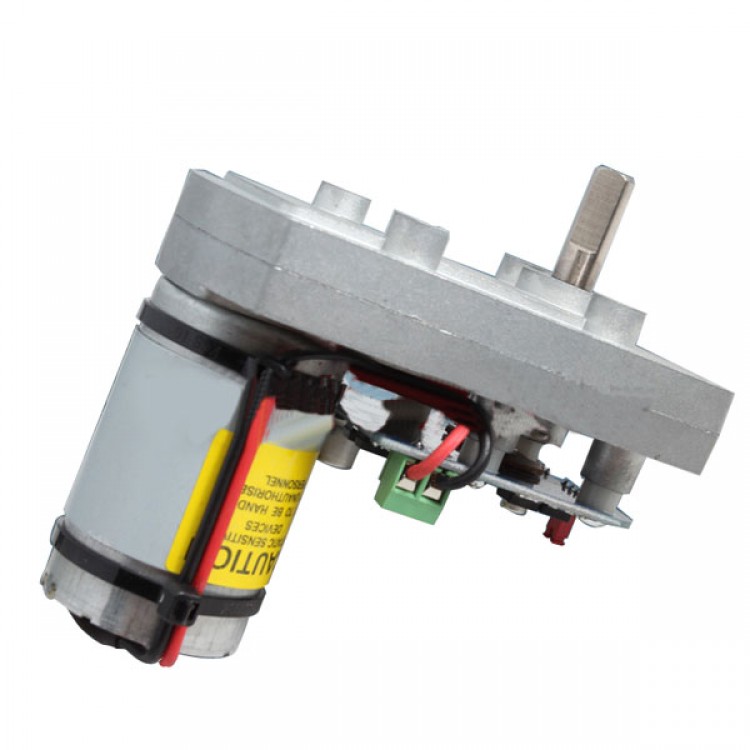

ASME-01A High-power High Torque Alloy Servo 12V/24V/110kg.cm for Robto Mechanical Arm
Specification:
- Operating voltage : 12-24V(DC)
- No-load current : <500mA
- Maximum torque : 110kg.cm (24V)
- No-load speed : 0.12s/60 Degree(adj)
- Rotation angle : 0° to 270 ° (adj)
- Input signal pulse width : 0.5 to 2.5ms
- Input Mode : pulse signal or analog voltage signal
- Voltage signal input range : 0-5V
- Control accuracy : 0.32 °
- Weight : 530g
- Gear Material : Steel
- Dimensions : 95.5mm X 60.5mm X 102.6mm
- This product does not include pictures inside the arm plate, such as the need to Purchasing
- Applications: medium and large robots, robots and other high-power high-torque control.
Package includes:
- 1pcs high-torque servos
- 1pcs signal line
