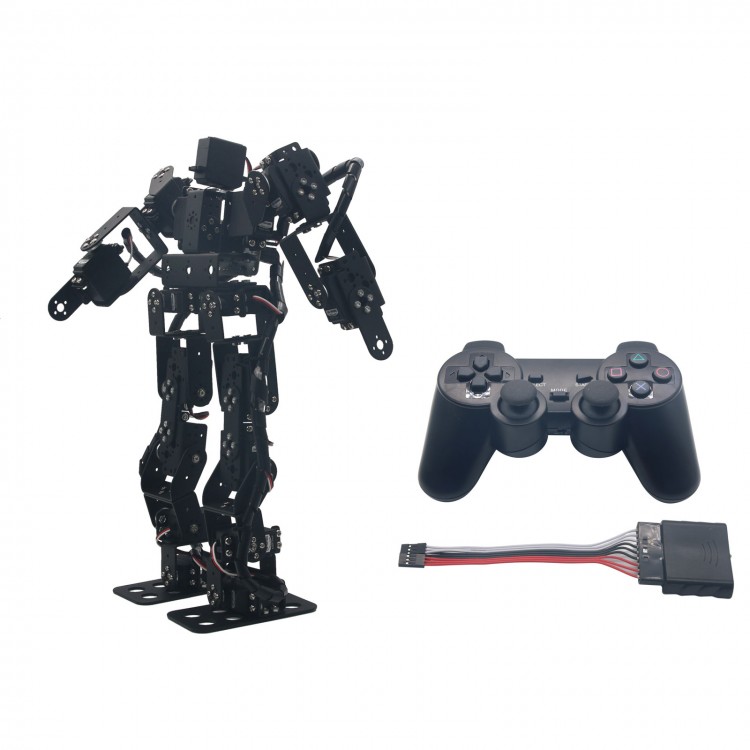

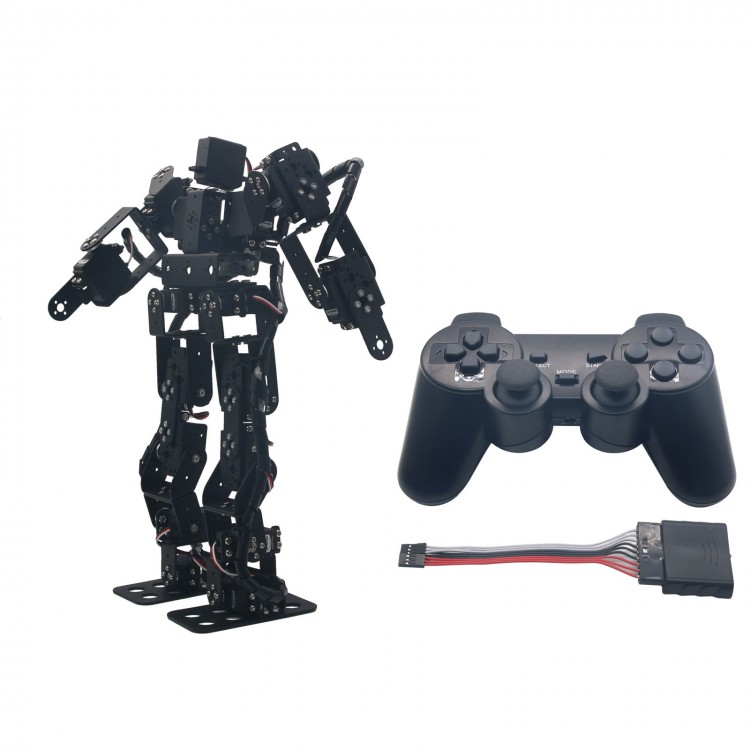

Assembled 17DOF Biped Robotic Educational Robot Kit Servo Bracket Ball Bearing with LD-1501 Servos & Controller

Assembled 17DOF Biped Robotic Educational Robot Kit Servo Bracket Ball Bearing with LD-1501 Servos & Controller

This is already assembled,  ready to go. The battery is not included. You have to buy it.

Features:
- Arches punching, corner cutting
- Cost-effective and easy-to-use
- For hobbyists,robot competition,kids
- Humanoid robot
- Color: Black
- Size:40cm(H)*23cm(W)

Containing the 17DOF:
1DOF of the head
4DOF of the arm
2DOF of the shoulder
2DOF of the hip
6DOF of the legs
2DOF of the feet

LD-1501 Servo Description:
- Large torque, quick speed, low noise, very small block zone and diastema. Suitable for mid/ high end robot
- Only need one signal, the digital servo can be locked and the angles are fixed
- Digital servo is added micro controller
- Weight: 60g
- Size: 40*20*40.5mm
- Speed: :0.16sec/60°7.4V
- Block torque: 15kg/cm 6V ; 17kg/cm 7.4V
- Working voltage: 6-7.4V
- Unloaded current: 100mA
- Cable length: 30cm

Manual download: click here   pls contact us get password

Package includes:
- 16 x Multi-functional servo bracket
- 7 x Short U-type servo bracket
- 4 x Long U-type servo bracket
- 4 x Oblique U-type servo bracket
- 4 x one-type servo bracket
- 4 x L-type servo bracket
- 1 x U-type robot waist bracket
- 2 x Foot Base
- 14 x Miniature Ball Radial Bearing
- 17 x Metal Servo Horn
- 1  x Screw and screw cap set
- 17 x LD-1501 Servos
- PS2 remote controller x 1 (w/ receiver)
- Dedicated servo control board x 1
- USB cable x 1
