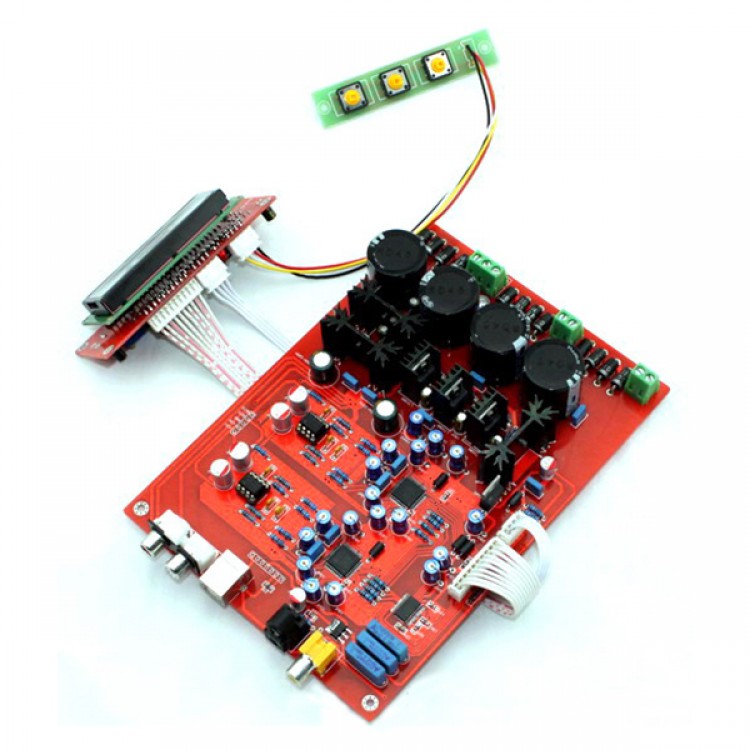

Assembled AK4399 DAC Software Control High-end Dual-parallel Decoder

Assembled AK4399 DAC Software Control High-end Dual-parallel Decoder

Description:
- All components of this product are original authentic, unpretentious, pure quality; using high-quality original parts, not just the safety and quality guaranteed, long life, more importantly, so that the actual performance can meet the design goals of a strong guarantee. Our pursuit of first-class quality is the consistent aim.

Feature
- Using original AK4399 (dual) + WM8805 + NE5534 electrolytic capacitor signal main circuit adopts famous Philips brand.the main filter capacitor capacitance using a dedicated audio NOVER 2 × 4700UF, using full-wave bridge rectifier circuit to ensure strong support for a steady stream of power.
- Resistance selection Rings metal resistance, the main circuit employs a precision of ± 1% metal film resistors rings, ensure the machine a good signal to noise ratio.
- PCB using double-sided sheet 1.6mm thick, 2.0 oz copper thickness, HASL whole process to ensure that the size of the current through the good performance. First-class quality of the PCB.
- AK4399 is the most high-end AKM company decoder chip, support 32BIT 192K USB decoder chip
- coaxial input support to 192KHZ, optical input support to 96KHZ
- directly display the sampling frequency, easy and intuitive
- comes with buttons to switch
- finished board Dimension: 18.5cm x 13.3 cm
- cpu board Dimension: 10.2x3.8 cm


Transformer parameters:
- 1. two AC 9V (each more than 10W) (from left to right :1-2 (6-9V) 3-4 of 9V 5-6-7 for the 12V-0-12V
- 2. one Dual 12V or dual pack AC 15V (15W or more)

Package:
- 1pc AK4399 DAC software control high-end dual-parallel decoder
