Assembled L15D Digital Audio Power Amplifier Kit IRS2092 IRFI4019H (2 boards)

Availability: Out Of Stock

  • Price:$56.90
  • Price in reward points: 569 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $55.76 $54.62 $52.92 $50.64 Contact US
Quantity:

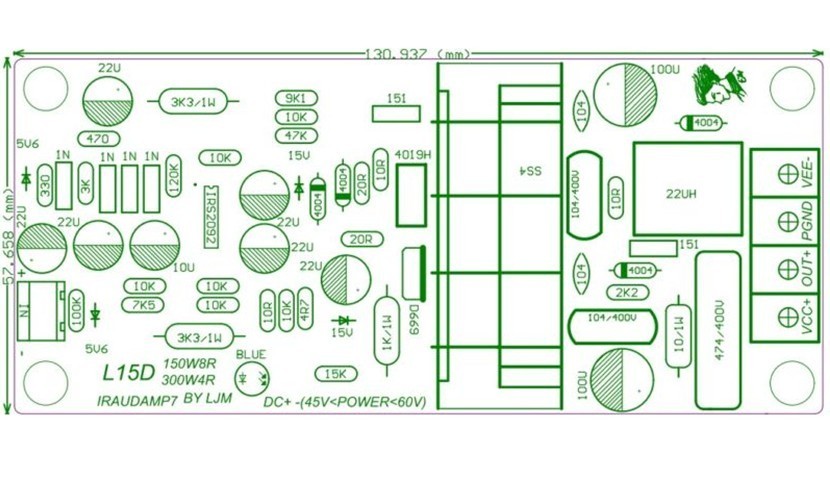

Assembled L15D Digital Audio Power Amplifier Kit IRS2092 IRFI4019H (2boards)

Description:
- Assembled
- 1board annle ,1set=2boards (2channels )


Recommend work voltage :
- Load 8Ω  Transformer voltage Double AC 40V ,DC :+ -DC55V, 200w / channel , filter capacitor 6800UF*2
- Load 4Ω Transformer voltage Double AC 35V ,DC :+ -DC48V,250w / channel  , filter capacitor 10000UF*2
- Load 4Ω DC +-58V ,350W 4R annel ,700w/2channels ,Recommend  voltage AC double 41V 1000W.

IRAUDAMP7S official introduction indicators

Applications
- AV receivers
- Home theater systems
- Mini component stereos
- Powered speakers
- Sub-woofers
- Musical Instrument amplifiers
- Automotive after market amplifiers

Features
- Output Power:Scalable output power from 25W- 500W (see Table 1)
- Residual Noise:200 μV, IHF-A weighted, AES-17 filter

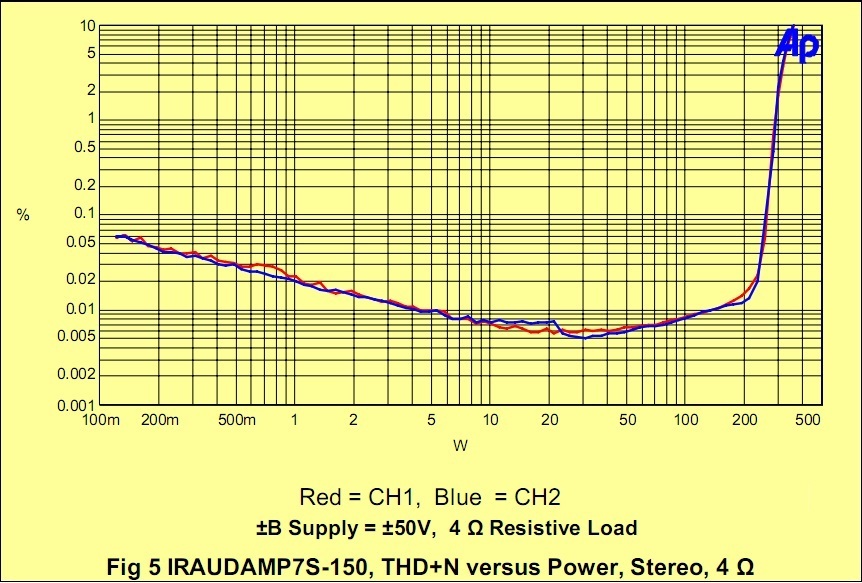

- Distortion:0.007 % THD+N @ 60W, 4 R
- Multiple Protection Features:   Over-current protection (OCP), high side and low side MOSFET
- Over-voltage protection (OVP),
- Under-voltage protection (UVP), high side and low side MOSFET
- DC-protection (DCP),
- Over-temperature protection (OTP)
- PWM topology:  Self-oscillating PWM, half-bridge or full-bridge topologies selectable

Package include :
- L15D digital audio power amplifier assembled  ...X 1set  (Include 2Boards and all the components )
