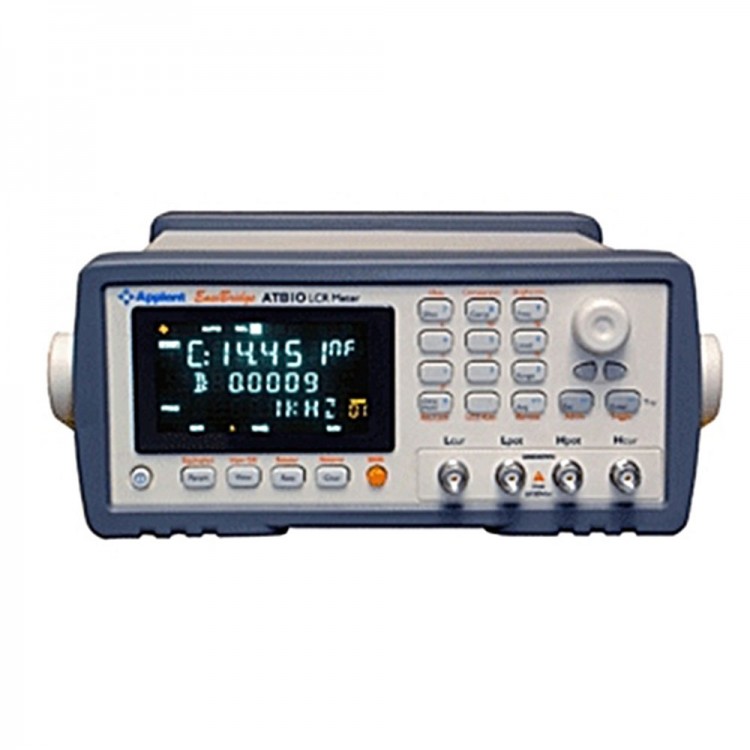

AT810D LCR Digital Meter 198VAC-240VAC VFD Display Tester Frequency 100Hz 120Hz 1kHz 10kHz Testing
Description:
AT810D USES high-energy processor, use highlight color VFDS intelligent LCR testing equipment of the screen.The use of large-scale SMT technology, makes the AT810D only tiny chassis can accommodate.Depends on the amber instrument the exquisite technology, make its performance also was impeccable.
Built in 100 hz and 120 hz, 1 KHZ and 10 KHZ test frequency, and provide 0.1 V, 0.3 V and 1 V test level, to make it can completely meet the general use of manufacturing.
Use of amber technology AT - OS 2005 miniature device operating system, make the AT810D fool operation interface.
Technical specifications:
- Measuring parameters: L, C, R, Z
- Monitoring parameters, D, Q, theta (deg), theta (rad)
- Basic accuracy: 0.2%
- Test frequency: 100 hz and 120 hz, 1 KHZ, 10 KHZ
- Display range: L: 0.01μH-9999H C: 0.01pF - 9999μF R,Z: 0.0001Ω - 99.99MΩ?8?4 Q: 0.0001 - 9999 θ(deg): -90.00°- 90.00°83 θ(rad): -3.1416 – 3.1416 Δ%: -9999% - 9999% D: 0.0001 - 9.9999
- Output impedance: 30Ohm, 100Ohm
- Range: 6 range automatic or manual testing
- The largest reading: the main parameters: 99999 vice parameters: 99999
- Signal level: 0.1 Vrms, Vrms Vrms 0.3 and 1
- Test speed: 3 times per second
- The comparator: 1 set of file records, 5-speed sorting
- List scan: no
- Calibration: open/short circuit frequency or frequency sweep reset
- Other: VFDS, according to the keyboard lock and data function
- Requirements: voltage: 198VAC-240VAC
- Frequency: 50 hz
- Power: 20VA MAX.
- Size and weight: 264 (W) x107 (H) x350 (D)
- Weight: 4 kg
Performance characteristics
- High brightness, super clear four-color VFDS display.
- The correction function: full range of open circuit and short circuit frequency sweep clear inputs.
- The third window can display the Z at the same time, D, Q, theta, Δ ABS, Δ % or sorting results.
- 1000 v super shock protection.
Package included:
- 1 x LCR Digital Meter
