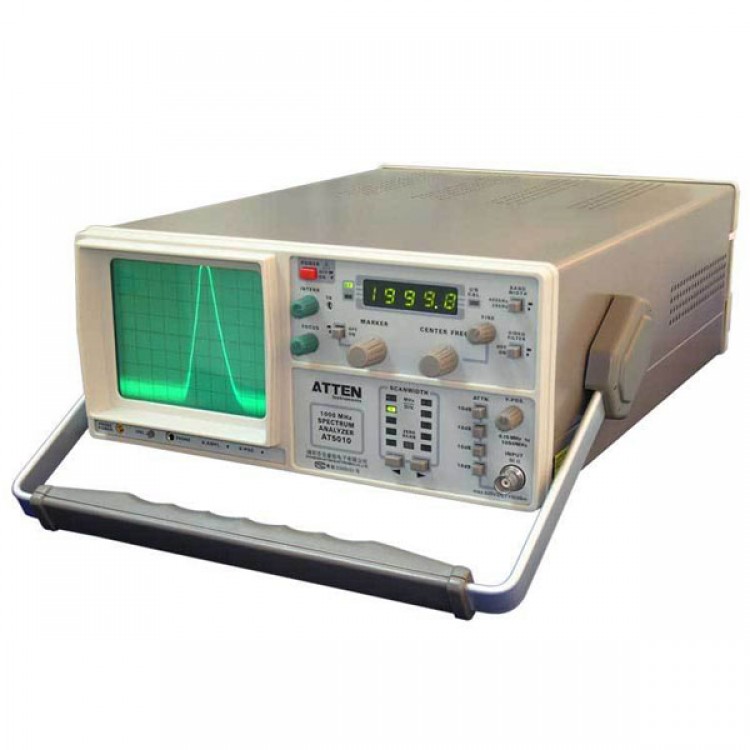

• ATTEN AT5010 Spectrum Analyzer 1050MHz

ATTEN AT5010 Spectrum Analyzer 1050MHz

Availability: Out Of Stock

  • Price:$639.34
  • Price in reward points: 6393 Reward Points: 64
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $626.55 $613.77 $594.59 $569.01 Contact US
Quantity:

Features:
- Frequency range: 0.15~1050MHz
- 4 and 1/2 digital displays. (Center frequency, 0.1MHz resolution)
- -100~+13dBm amplitude range, 20MHz, 400MHz center frequency span and 4 KHz video filter.
- Tracking generator (only the ATTEN5011+)
- Output amplitude :+0~-50dBm(50Ω)

Specification:
- Frequency range: 0.15 to 1050MHz
- Center frequency display accuracy: ±100kHz
- Marker accuracy: 0.1% spans 100 kHz
- Resolution of frequency display: 100 kHz (4.5 digit LED)
- Frequency scans width accuracy: ±10%
- Frequency stability: better than 150 kHz/ hour
- IF Bandwidth (-3dB): 400 kHz and 20 kHz
- Video-Filter (ON): 4 kHz
- Sweep rate: 43Hz
- Amplitude range: -100dBm to +13dBm
- Screen display range: 80dB (10dB/div.)
- Reference level: -27dBm to +13dBm (in 0dB steps1)
- Reference level accuracy: ±2dB
- Average noise level: -90dBm (20 kHz Bandwidth)
- Distortion: < -55dBc of 2nd and 3rd harmonic
- Third order intermod.: -70dBc (two signals > 3MHz apart)
- Sensitivity: Better than -90dBm
- Log scale fidelity: ±2dB (without attn.) 500MHz
- Input attenuator: 0 to 40dB (4×10dB steps)
- Input attenuator accuracy: ±1dB/10dB
- Max. Input level: +10dBm, ±25V DC (0dB attn.) +20dBm (40dB attn.)
- Frequency scans width: 100 kHz/div. to 100MHz/div, in 1-2-5 steps and 0Hz/div. (Zero Scan)
