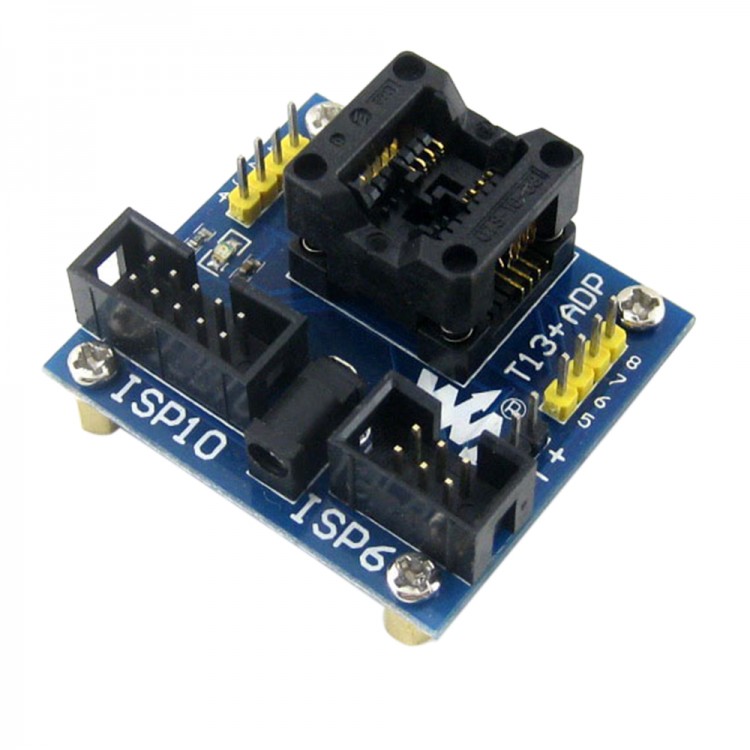

ATtiny13A-SSU Tiny13A-SSU AVR Programming Block Test Block Module SSOP8 for DIY
Specification:
- AVR SSOP8 testing module
For ATtiny13 SSOP8 and related types that compatible with pins like ATtiny13/ATtiny12/ATtiny15/ATtiny25
Features:
- Can make testing and programming through ISP interface
- All the pins has been led out , space is 2.54mm (100mil)
| Model | Lead pitches(mm) | Pinouts | A(mm) | B(mm) | C(mm) | D(mm) | E*F(mm) |
| OTS-8(16)-1.27-03 | 1.27 | 8 | 6.0+-0.2 | 3.9+-0.1 | 5.0+-0.2 | - | 20*18 |

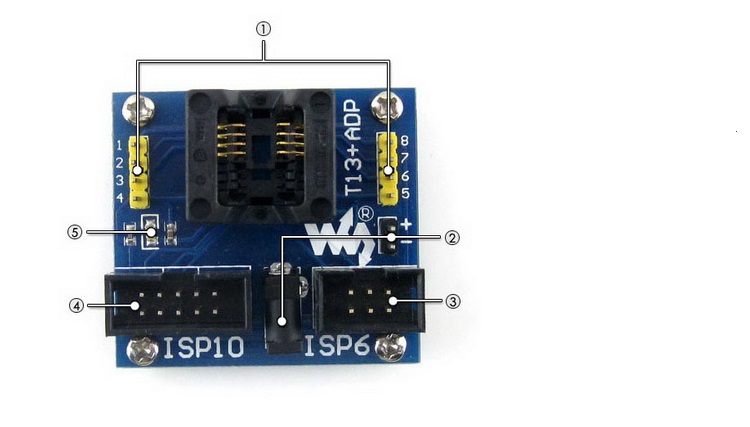

1. MCU pin
2. 5V power input interface

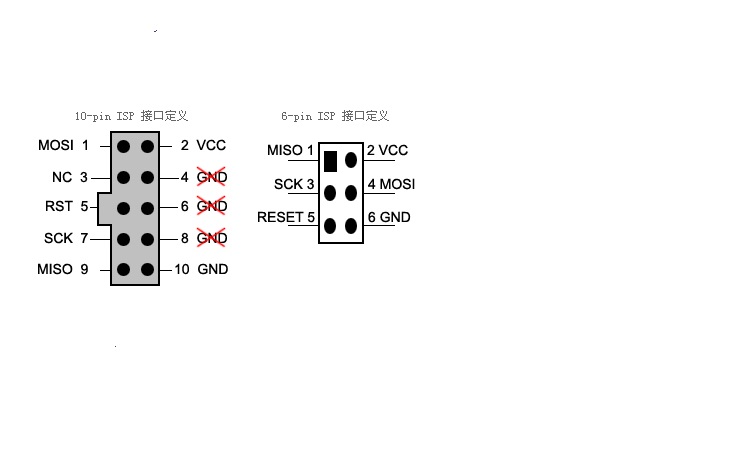

3. 6PIN ISP interface
4. 10PIN ISP interface
5. Power indicator light
Package included:
- 1 x Programming Module
