Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $224.42 | $219.84 | $212.97 | $203.81 | Contact US |

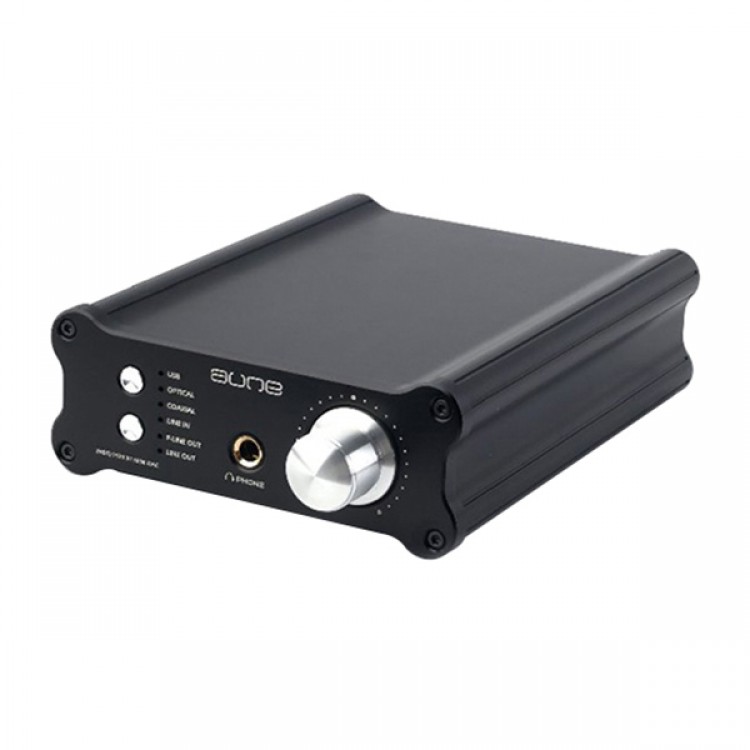

aune X1 SE 24BIT Decoder(asynchronous clock) Earphone Amplifier/ Former Level(the Fourth Generation) Black
Specification:
- Dimension: wide: 130mm length: 175mm height: 51mm
- Weight: 769g
- Earphone interface: 6.5mm earphone interface (offer an adapter, can switch to 3.5mm inteface)
- Circuit/ LO output: inside decoder analog audio signal output interface
- Circuit/ LO input: external analog audio input interface
- Digital signal input: Optical digital signal input interface
- USB interface: USB-B input interface
Parameters:
- Output terminal: a group of simulation RCA, 6.5mm headset socket x 1
- Frequency response characteristic: +/-0.05dB@20HZ-20KHZ
- Output THD+noise: THD+N<0.00227%(-92.8dB)@20KHZ 带宽
- : smaller than -101dB@1kHZ smaller than -85dB@20HZ-20kHZ
- Output SNR: +/-3dB@1kHZ-95dBFS
- Output option: USB/Optical/Coaxial x 1
- : P - Pmax: 10V
- Motor output matching resistance: 32 ohm---600 ohm
- Line output level: 2V rms
- Input power: DC12-22V larger than 500mA
Package & Accessories:
- Packing box: 275*275*89(mm)
- Power supply: professional independent external power supply
- Adapter: exclusive USB cable
- Charger
