AWork Platform ARM9 Development Board I.MX283A+AP-283Demo with TFT-4.3A LCD Touch Screen for DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$35.82
  • Price in reward points: 358 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $35.10 $34.39 $33.31 $31.88 Contact US
Quantity:

AWork Platform ARM9 Development Board I.MX283A+AP-283Demo with TFT-4.3A LCD Touch Screen for DIY

Specification:

- CPU: Freescale I.MX283 ARM9
- Main frequency: 454MHz
- Memory: 64MB
- NAND Flash: 128MB
- LCD: Yes
- Touch screen: Support 4tvl resistance
- Seriel port: 6 channels
- CAN: No
- Ethernet: 1 channel
- Hardware watchdog:1 channel
- TF card interface:1 channel
- SPI: 1 channel
- I2C: 1 channel
- GPIO: 9-24 channel
- AD : 4 channel; 12BIT
- I2S: 1 channel

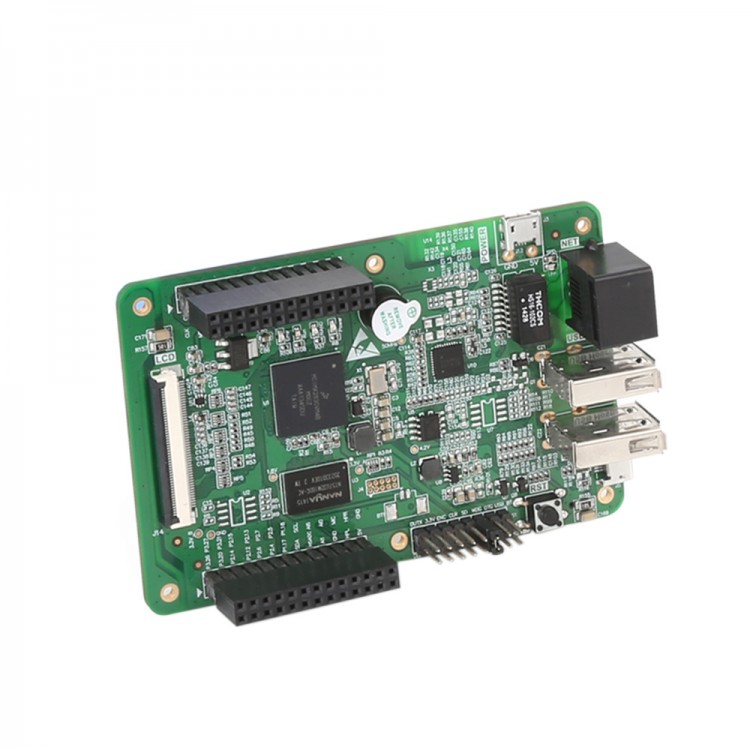

EasyARM-I.MX283A mainboard:
- With a Freescale ARM9 I.MX28series multimedia application processor,.
- Integrates with DDR2 and NAND Flash, and UART, I2C, SPI, ADC, SDIO, USB Host, USB Device, 10/100M Ethernet etc common interfaces.
- Support 16 bit TFT LCD and resistance type touch screen.

AP-283Demo development board:
Include key circuit, RS232 circuit, CAN receiving and transmitting circuit, E2PROM, segment digital tube, video circuit, ADC circuit with thermistor,.

4.3inch TFT LCD touch screen:
- Support 4.3", 5.6", 7" LCD kit
- HIgh lightness and low power consumption

More information: Click here

Package included:
- 1 x EasyARM-I.MX283A mainboard
- 1 x AP-283Demo development board
- 1 x TFT-4.3A LCD
- 1 x RS232-TTL Module
- 1 x FFC connection cable
- 4 x Dupont cable
- 21 x Short-circuiter
- 4 x Copper column
- 4 x Screw
