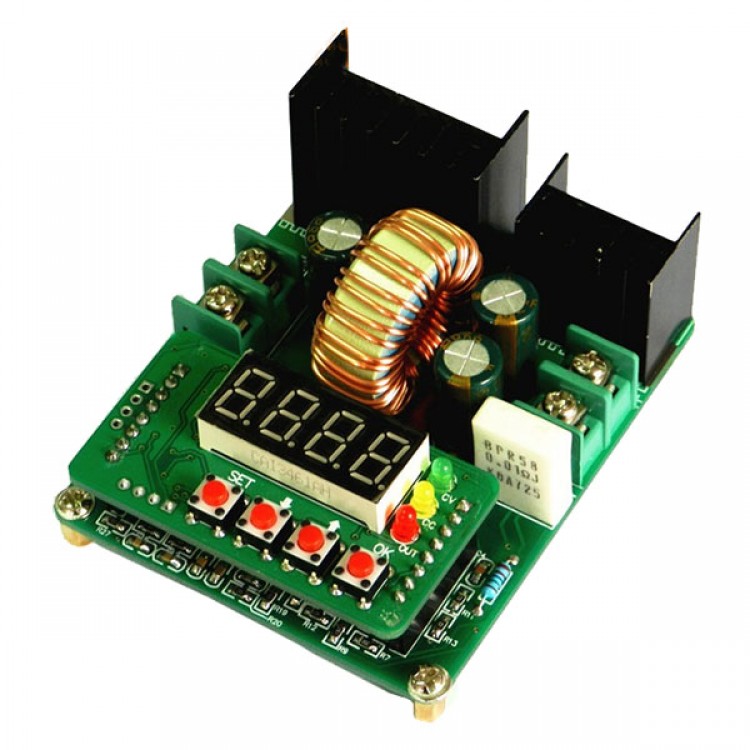

• B3006 High Precision CNC DC-DC Constant Voltage Constant Current Buck LED Driver Modules Solar

B3006 High Precision CNC DC-DC Constant Voltage Constant Current Buck LED Driver Modules Solar

Availability: In stock, usually dispatched in 1 business day

  • Price:$23.81
  • Price in reward points: 238 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $23.33 $22.86 $22.14 $21.19 Contact US
Quantity:

B3006 High Precision CNC DC-DC Constant Voltage Constant Current Buck LED Driver Modules Solar

Description

- Tips: As the core component parameter changes BUCK-3008, and now the model change for the BUCK-3606; Input voltage: 6-40V output voltage output current 0-6A 0-36V

Show Description:
- 00.00: The voltage value, 00.00 ~ 36.00V
- 0.000: current value, 0.000 ~ 3.000A
- P.000, P0.00, P00.0, P000 .: power value, unit W, decimal point position changes with the power to change - position. For example: P.123 said 0.123W, P1.23 said 1.23W, P12.3 said 12.3W, P102 represents 102W.
- C.000, C0.00, C00.0, C000 .: capacity value, unit AH, decimal point position is changed with the change of - the position of capacity. For example: C.123 said 0.123AH, C1.23 said 1.23AH, C12.3 said 12.3AH, C123 - represents 123AH.
--0--, --1--, --2-: Special features 0,1,2
--y-: Open the special features
--n-: Close Special Function
SA .- * (* denotes 0 to 9): Save the parameters to the storage location of the 0 to 9 in any one storage location
Lo .- * (* denotes 0 to 9): Recall stored locations 0-9 arbitrary set of parameters
----: Save parameters
