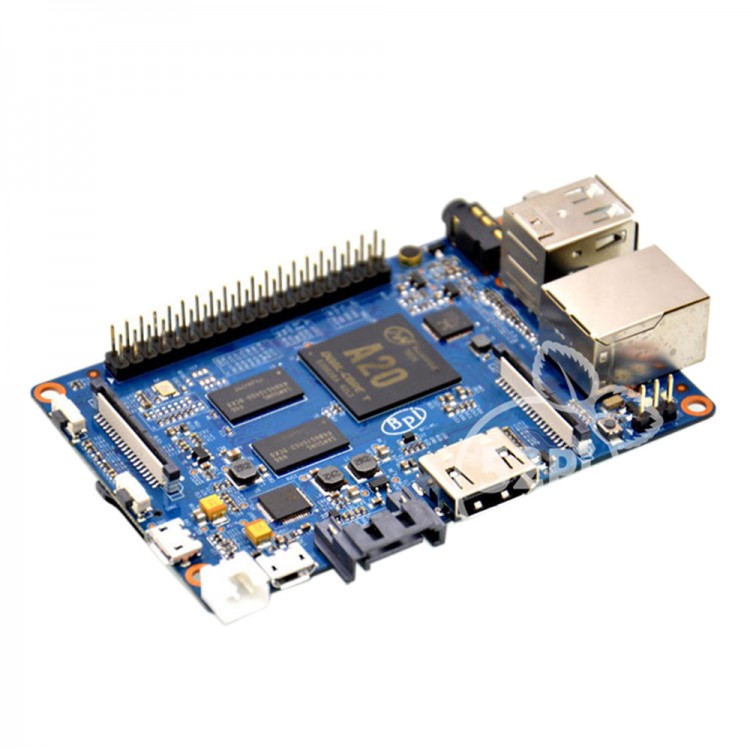

Banana Pi M1+ Plus BPI-M1+ Dual Core A20 1GB RAM Onboard WiFi Open-Source Singel-Board Computer SBC

Banana Pi M1+ Plus BPI-M1+ Dual Core A20 1GB RAM Onboard WiFi Open-Source Singel-Board Computer SBC

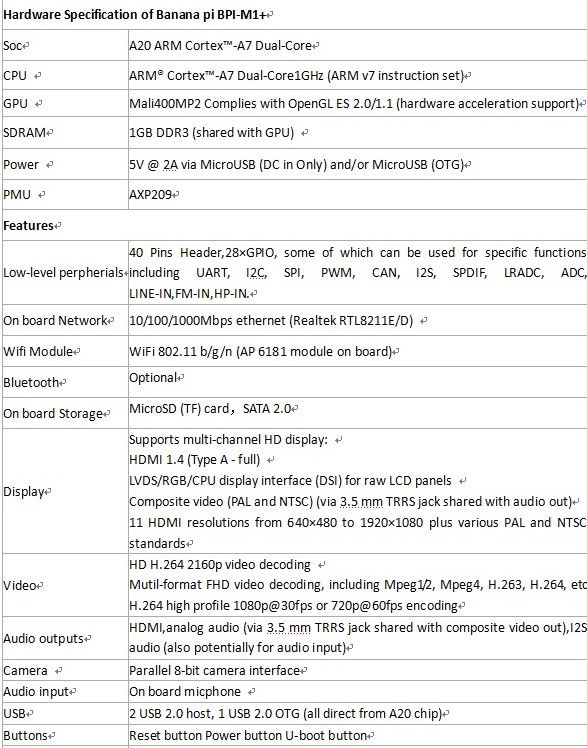

Hardware Specification of Banana Pi M1+
- Soc: Allwinner A20
- CPU: ARM Cortex-A7 Dual-Core 1 GHz (ARM v7 instruction set)
- GPU: Mali400MP2 Complies with OpenGL ES 2.0/1.1 (hardware acceleration support)
- SDRAM: 1GB DDR3(shared with GPU)
- Power: 5V/2A via MicroUSB (DC in Only) and /or Micro USB (OTG)
- PMU: AXP209

Features:
- Low-level perpherials: 40 Pins Header ,
- 28xGPIO,some of which can be used for specific functions including UART,I2C,SPI,PWM,CAN,I2S,SPDIF,LRADC,ADC,LINE-IN,FM-IN,HP-IN
- On board Network: 10/100/1000Mbps ethemet(Realtek RTL8211E/D)
- Wifi Module: Wifi 802.11 b/g/n
- Bluetooth: Optional
- On board Storage: Micro SD(TF) Card,SATA 2.0
- Display: Supports multi-channel HD display:
- HDMI 1.4 (Type A -full)
- LVDS/RGB/CPU display interface (DSI) for raw LCD panels
- Composite Video(PAL and NTSC)(via 3.5mm TRRS jack shared with audio out)
- 11 HDMI resolutions from 640x480 to 1920x1080 plus various PAL and NTSC standards
- Video: HD H.264 2160p video decording
- Multi-format FHD video decording,including Mpeg 1/2 ,Mpeg4,H.263,H.264,ect H.264 high profile 1080p@30fps or 720p@60fps encording
- Audio outputs: HDMI ,analog audio(via 3.5mm TRRS jack shared with composite video out),I2S audio (also potentially for audio input)
- Camera: Parellel 8-bit camere interface
- Audio input: On board microphone
- USB: 2USB 2.0 host,1 USB 2.0 OTG (all direct from A20 chip)
- Buttons: Reset button
- Power button
- U-boot button

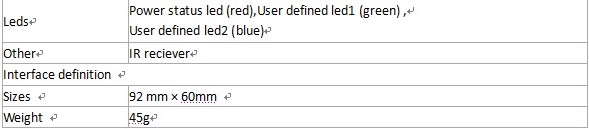

- Leds: Power status led(red)
- User defined led1(green)
- User defined led2(blue)
- Other: IR receiver

Package included:
- 1 x Board
