BeeRotor Transmitter 5.8G 25-600mW 40CH Audio Video Tx Module for FPV RC Drone Quadcopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$33.79
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $0.00 $0.00 $0.00 $0.00 Contact US
Quantity:

BeeRotor Transmitter 5.8G 25-600mW 40CH Audio Video Tx Module for FPV RC Drone Quadcopter

BR25-600 VTX

The BR25-600 transmitter packs is between 20mW and 600mW tunable  ultra clean 5.8GHz power in a micro sized video/D-audio transmitter! A must for those looking save size and weight while still getting good performance. The BR25-600 is transmitting a full range of 40 channels and only weighs 12.8g. It's perfect for a wide range of aircraft!

Features
- 40 channels: Cover A, B, C, E bands and R bands
- Micro sized and light weight
- Transmitter frequency: 5645-5945MHz with 200mW power output
- Transmitting distance > ~1500m (open area)
- LED indicators for Fr/Ch

BR25-600 specs:
- Modulate: Wideband FM Modulate
- Video Format: NTSC/PAL,optional,please tell us the one you want.
- Output Impedance: 50 Ohm
- Output Power: 23-24dBm
- Channel: 40 CH
- Operating Voltage: 7V-28V
- Supply Current: 190mA
- Operating Temperature: -10~85 Video Band Width : 0~8.0 MHz
- Audio Carrier Frequency: 6.5 MHz
- Video Input Level: 0.8~1.2 Vp-p
- Video Input Impedance: 75 Ohm
- Audio Input Level: 0.5~2.0 Vp-p
- Audio Input Impedance: 10K Ohm
- Connector:  RP-SMA
- Antenna connection: SMA
- Dimension: 31mm x 21.5mm x 9.2mm
- Weight: 12.8 (without antenna)

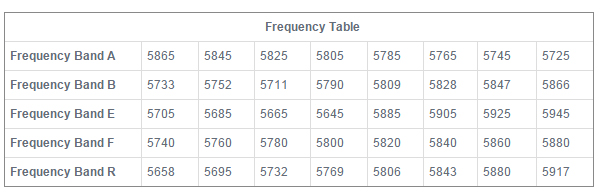

Frequency and channel frequency table:

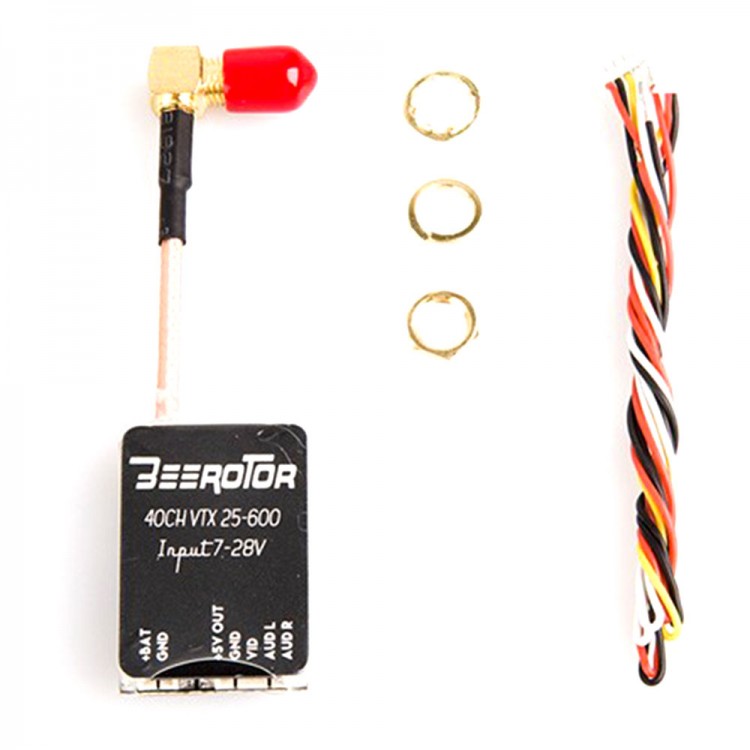

Package Include:

- 1 x Tansmitter
- 1 x Cable
- 3 x Washer
