Beetle LS-300 Glass Fiber Alien Hexacopter with Emax 2204 Motor & 12A ESC & CC3D Flight Control for FPV Photography

Availability: In stock, usually dispatched in 1 business day

  • Price:$165.80
  • Price in reward points: 1658 Reward Points: 17
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $162.48 $159.17 $154.19 $147.56 Contact US
Quantity:

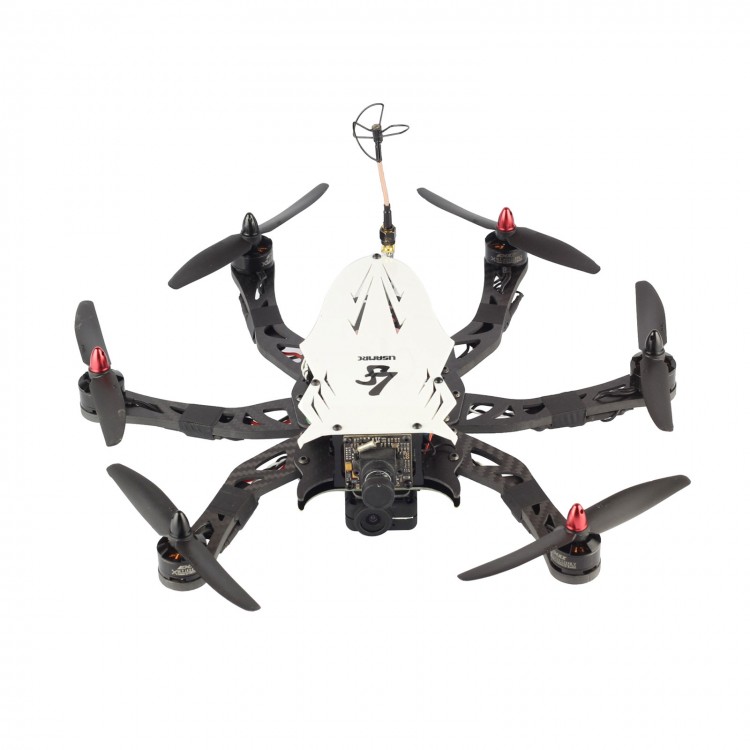

Beetle LS-300 Glass Fiber Alien Hexacopter with Emax 2204 Motor & 12A ESC & CC3D Flight Control for FPV Photography

Description:
- Name of the product: beetle
- No. of the product: L3-300
- Glass fiber weight: 160g
- Center wheelbase: 300mm
- Unfolding size: 295*270mm

Official recommendation (not included)
- Brushless electronic machine: 1806-2204(2000-2300kv)
- Brushless electronic adjustment: 10-15A 3S
- System support: mini apm cc3d
- Battery support: 3s 1500-2200mah
- Throttle rod: 5030 iches

Parameters
- Body frame adopts 1.5mm glass fiber board, light weight
- The hexacopter is with PCB circuit lower board for placing the wires
- Hexacopter arm thickness is 5mm,
- Front placed FPV camera, compatible with Mobius mini camera





CC3D Flight Controller Description:
- CC3D openpilot opensource flight control is suitable fro MINI 200/250/300 multicopter
- With damper two sides sticks, and three connecting cables
- Shell size: 40mm*40mm*14mm
- Board size: :36mm*36mm
- Board net weight: 7.3g
- Total weight: 15.2g

MT2204 2300KV Brushless Motor
Specification:

- KV: 2300
- Max Trust: 440g
- No. of cell: 2-3S
- Framework: 12N14P
- Propeller: 5" - 6"
- Length: 32.2mm
- Shaft: 3mm
- Diameter: 27.9mm
- Weight: 25g

ESC:
- Based on Simonk programme
- Low voltage protection, over current protection, power on self detection function
- Supportmax rotate speed: 210,000r(2 magnetic poles), 70,000r(6 magnetic pole), 35000r(12 magnetic poles)
- MCJ and BEC adopts different stabilizer, improve anti interference ability
- ESC multiparameters can be set through RC
- Throttle range can be set, to compatible with different receiver, has very good low speed performance
- Built in linear BEC or switch BEC
http://gd4.alicdn.com/imgextra/i4/1811422106/TB2DyaNXVXXXXcnXXXXXXXXXXXX_%21%211811422106.jpg

Package Include:
- Beetle LS-300 Glass Fiber Alien Hexacopter Frame Kit  x 1pcs
- EMAX 2204 Motor  x 6pcs
- EMAX 12A ESC x 6pcs
- CC3D Flight Controller x 1pcs
- 5 inch Carbon Fiber Propeller x 3pairs
