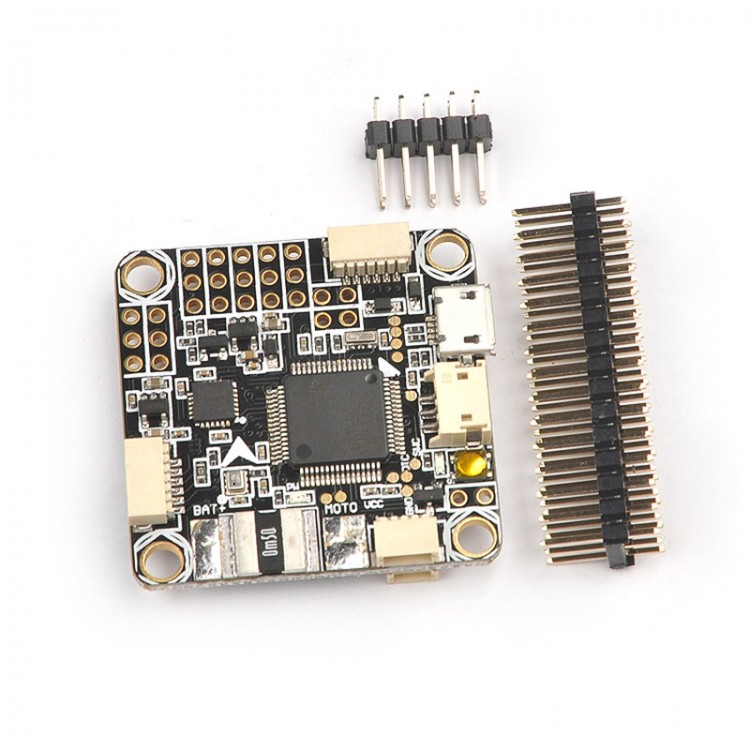

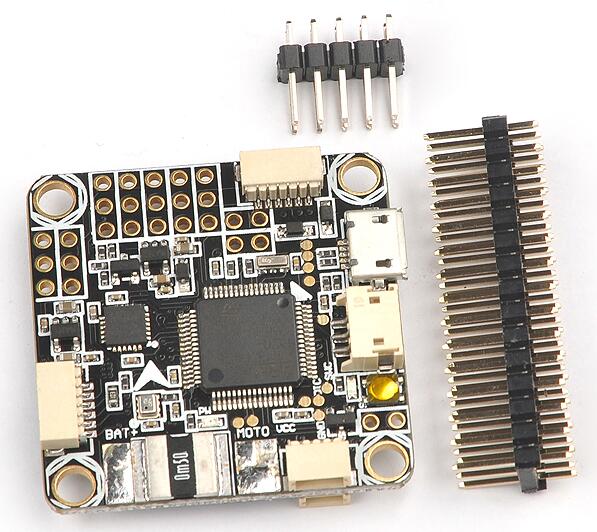

Betaflight OMNIBUS F4 Pro V2 Flight Controller Built-in OSD/BEC Suitable for Six-axis FP

Availability: In stock, usually dispatched in 1 business day

  • Price:$18.00
  • Price in reward points: 180 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $17.64 $17.28 $16.74 $16.02 Contact US
Quantity:

Betaflight OMNIBUS F4 Pro V2 Flight Controller Built-in OSD/BEC Suitable for Six-axis FP

Product Description:
- New model OMNIBUS F4 Pro (V2) AIO flight control Betaflight program built-in OSD function with power module BEC
- Product Name: betaflight OMNIBUS F4 Pro (V2) flight controller
- Size: 35x35mm
- Mounting hole: 30.5x30.5mm
- OMNIBUSF4 characteristics:flight control and OSD program is integrated in a MCU, without additional single-chip to control OSD, and OSD parameter adjusting software and flight controller parameter adjustment integrate together,the input and output use standard device interface, reducing the switch wires and connector chips, reducing bad line contact, improving the assembling and maintenance convenience,use the MPU6000 sensor and connected by SPI bus, improving the sensor sampling rate, improving the operating frequency of MCU master program, providing higher precision and faster response speed, built-in power module BEC, without external connection, more convenient to use.

Hardware parameter:
STM32 F405 MCU Single chip
Barometer:BMP280
Six axis sensor MPU6000 uses the SPI connection
Standard SD card slot
Single chip controls OSD chip through the SPI bus DMS mode,faster speed
Built-in power module BEC, no external connection, easy to use.

Package List:
- 1 x Betaflight OMNIBUS F4 Pro V2 flight controller
