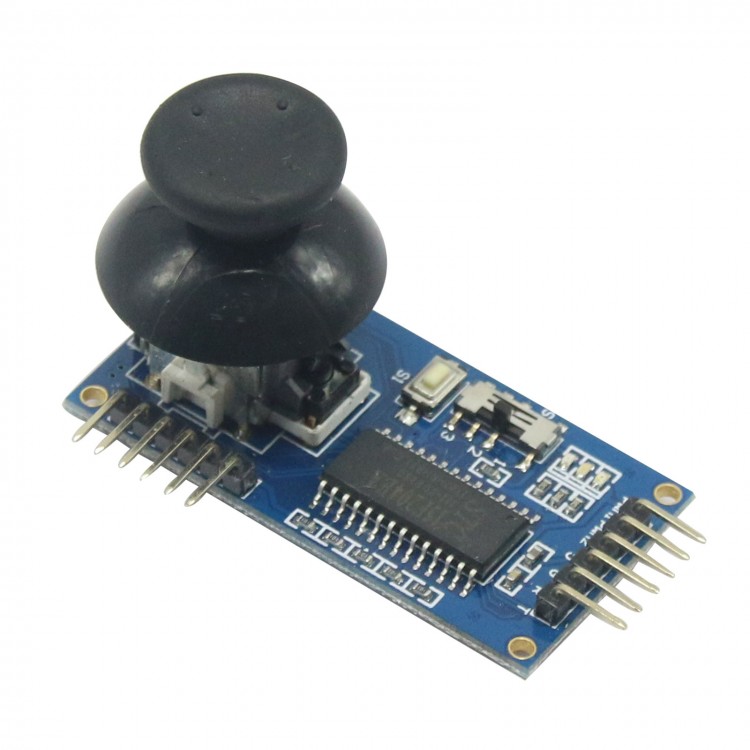

BGC2.3 Rocker V1.2 Handheld Brushless Gimbal Controller Main Board f/ FPV Photography



Description:
- This is a 2CH PMW output module,you can cantrol the DSLR Handle Brushless Gimbal Stabilizer Pitch or Roll

Features:
- 2 channel PWM output
- PWM1 for PITCH controller output
- PWM2 for Roll controller output
- Special for DSLR Handle Brushless Gimbal Stabilizer
- PWM1,PWM2, 5V,GND,R,T

Display Module:
Red LED: Power indicator
Green LED: IIC status indicator, if IIC in normal, green lights, if abnormal, green flashes
Blue LED: On status indicator

Function Module:
3-phase switch
A: PWM output mode
B: Serial port output mode
C: None
Button: ACC

Controller Module: Control gimbal BGC Pitch and Roll by an omnidirection rocker

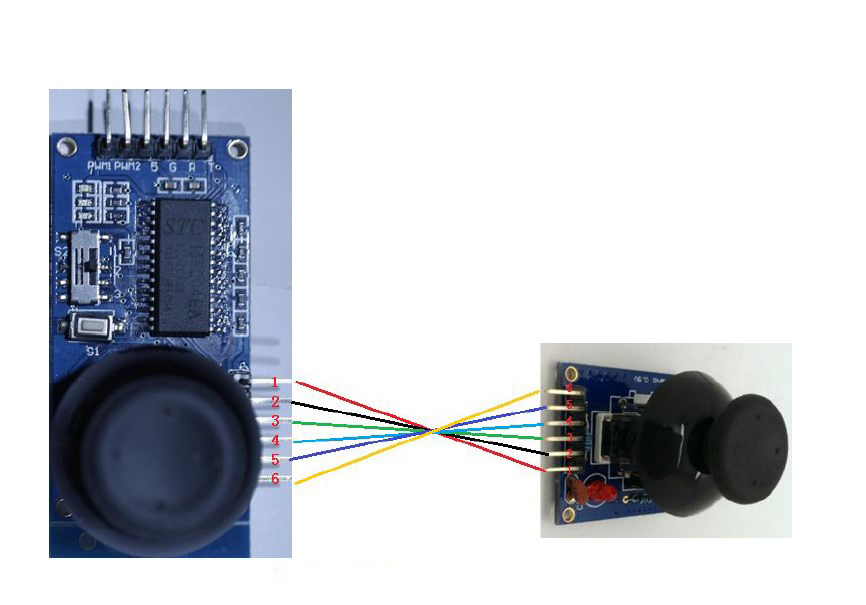

Port:
PWM1 is rocker Y-axis output
PWM2 is rocker X-axis output
Could connect on BGC A0, A1, A2, A3

5V, GND, RX, TX is serial port output interface(need BGC2.3 firmware)
