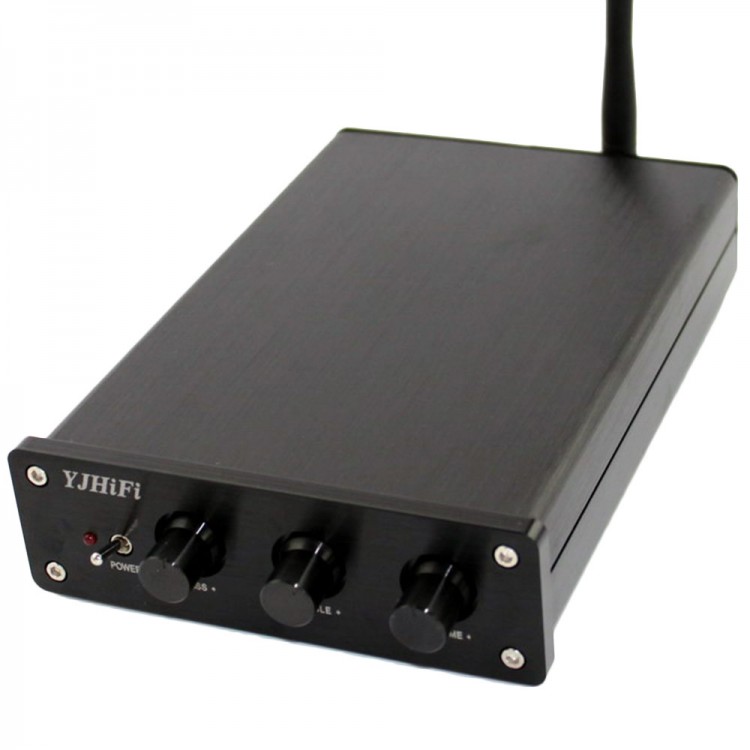

Bluetooth Power Amplifier TPA3116+AK4490 2.1 Class D 100W+50W+50W Digital AMP for Audio

Availability: In stock, usually dispatched in 1 business day

  • Price:$55.18
  • Price in reward points: 552 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $54.08 $52.97 $51.32 $49.11 Contact US
Quantity:

Bluetooth Power Amplifier TPA3116+AK4490 2.1 Class D 100W+50W+50W Digital AMP for Audio

Specification:

- Adopt TPA3116 and CSR4.0 bluetooth module
- Decdoing chip AK4490
- NE5532 OP
- Coupling capacitance, Siemens 1UF
- Main filter capacitor adopts ELNA electrolytic capacitor
- Resistance adopts five ring metal resistance, main circuit accuracy 1%
- PCB thickness 1.6mm, copper thickness is 2.0Oz
- Fully enclosed dust control potentiometer, the performance is more stable
- Red ash ring audio special large current inductor
- Full aluminum chassis
- Bluetooth 4.0
- Gold-plated bluetooth antenna, receiving range: 10m
- Input: Bluetooth and analog input, bluetooth input takes precedence
- Not included DC24V power supply

Parameters:
- Working mode: class D
- Static current: 50mA
- Work efficiency: 90%
- Rated output power: 100W+2*50W
- Frequency response: 20Hz to 20KHz
- Operating voltage: DC18V to DC24V
- Maximum output current: 3A
- Size: 220*130*45mm (L*W*H)
- Antenna hight: 11cm

Package List:
- 1 x Power Amplifier
