• BM2312 (2212) 1300KV 240W 24A Brushless Motor Brushless Motor for RC FPV Fixed Wing Multicopter

BM2312 (2212) 1300KV 240W 24A Brushless Motor Brushless Motor for RC FPV Fixed Wing Multicopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$15.48
  • Price in reward points: 155 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $15.17 $14.86 $14.40 $13.78 Contact US
Quantity:

BM2312 (2212) 1300KV 240W 24A Brushless Motor for RC FPV Fixed Wing Multicopter

Specification:

- 0.2MM 1200# coiled silicon steel sheet
- Motor main rotor: 4mm
- KV: 1300
- Iron core size: 2312

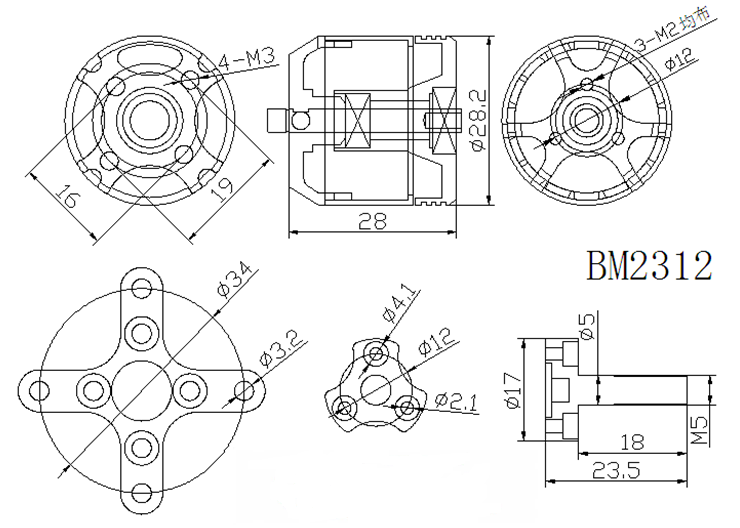

- Motor size: 28.2*28
- Weight: 56g
- Idle current: 0.9A 7.4V
- Support lithium battery: 2-3s Lipo
- Max. continuous current: 24A
- Max. continuous power: 240W
- Interbal resistance: 0.073Ohm

Test parameters and assembly:
- Lithium battery: 3S
- Propeller: 9*4.7/ 9*6
- ESC: 20A
- Take-off weight: 0.35-0.5kg
- For aircraft: 400 class

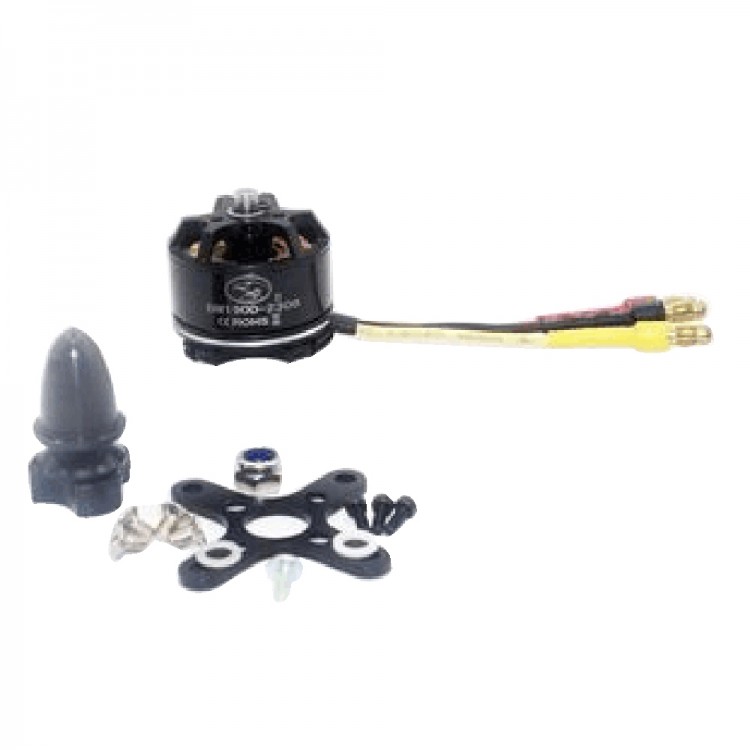

Package included:
- 1* Motor
- Accessories
