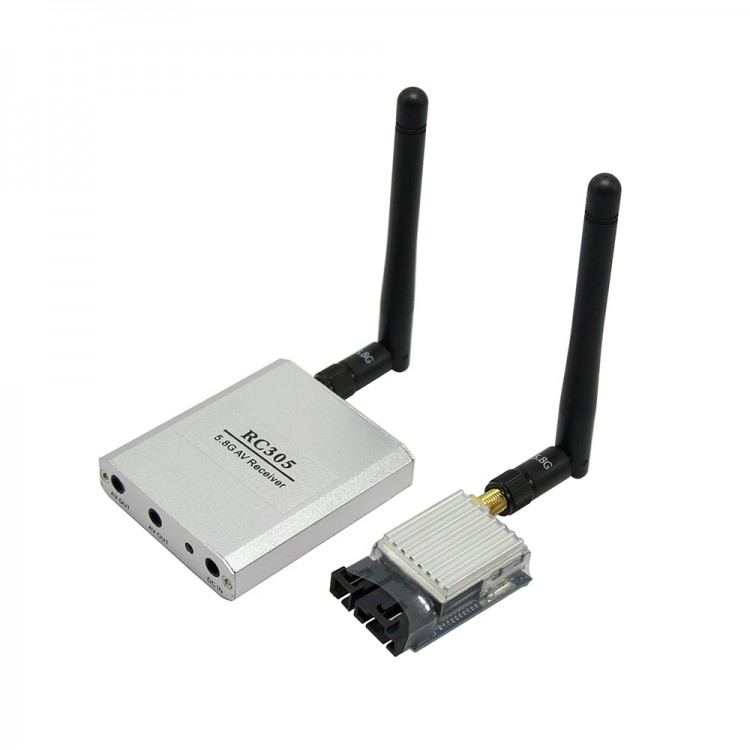

Boscam 5.8Ghz 200mW 8 Channel FPV Audio Video Transmitter&Receiver TS351+RC305 For DJI Phantom 2Km Range

Boscam 5.8Ghz 200mW 8 Channel FPV Audio Video Transmitter&Receiver TS351+RC305 For DJI Phantom 2Km Range

5.8Ghz 200mW transmitter(TS351) Specifications:
- 5.8Ghz 200mW transmitter(TS351). This system is Good for up to 500m flying with the supplied antenna. An optional directional antenna can extend range to 2km+. This unit a Includes built-in microphone. The receiver unit has additional AV outputs for video recording while using FPV goggles.


Features:
- Output impedance: 50Ohm
- Output power: 21~23dBm
- Channels: 8
- Transmitter operating voltage: 7~15VDC / 150mA
- Receiver operating voltage: 5VDC
- Operating temp: -10~85C
- Video bandwidth: 0~8.0MHz
- Audio frequency: 6.5MHz
- Video input level: 0.8~1.2Vp-p
- Video input impedance: 75Ohm
- Audio input level: 0.5~2.0Vp-p
- Audio input impedance: 10K/Ohm
- Weight: 25g
- Antenna connector: RP-SMA
- Dimensions: 55x26x17mm


Channels
- 5.8G : 5705,5865,5665,5645,5885,5905,5925,5945MHZ

5.8Ghz 200mW Wireless 8CH AV RX FPV Audio Video Receiver Plane RC305

Description

- Item Name:  FPV 5.8G 8CH 200mW AV Wireless Receiver RC305
- Channels: 8
- Receiver operating voltage: 5V - 12V DC
- Operating temp: -10~85C
- Video bandwidth: 0~8.0MHz
- Audio frequency: 6.5MHz
- Video input level: 0.8~1.2Vp-p
- Video input impedance: 75Ohm
- Audio input level: 0.5~2.0Vp-p
- Audio input impedance: 10K/Ohm
- Antenna connector: SMA
- Dimensions: 61x52x13mm

Working frequency:
CH1: 5705   CH2: 5685
CH3: 5665   CH4: 5645
CH5: 5885   CH6: 5905
CH7: 5925   CH8: 5945

Package Contents
- 1 x TS351 Transmitter
- 1 x Stock Dipole Whip Antenna
- 1 x Power in Harness
- 1 x Power Out Video Out Audio Out Harness
- 1 x RC305 Receiver
- 1 x Antenna
- 1 x Cable
