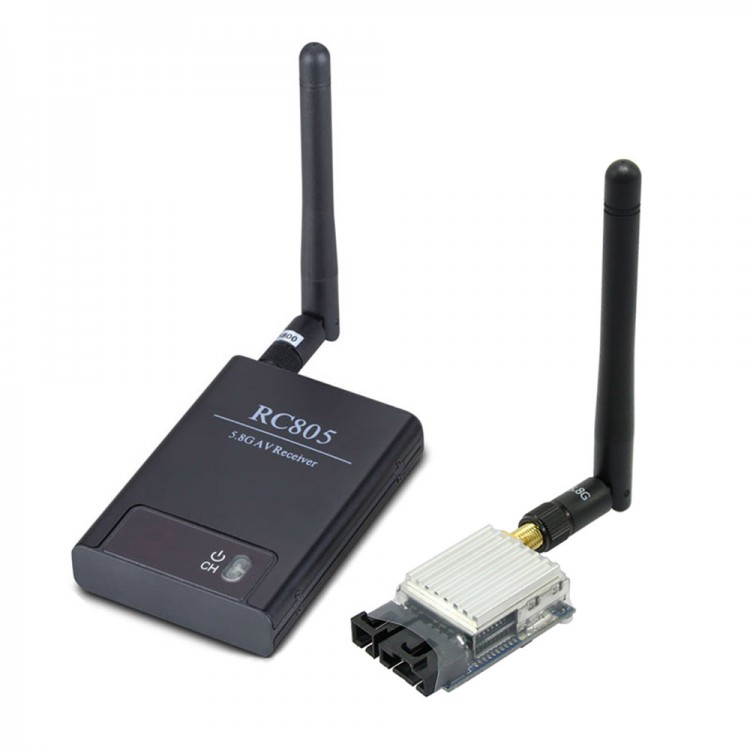

Boscam 5.8GHz FPV 200mW 2KM 2000M AV Wireless Transmitter TX Rx Receiver TS351+RC805 Kit 5.8G for RC MultiCopter
Features:
Small size and lightweight.
High output power, low power consumption, and low harmonic radiation of the transmitter.
Easy 8 channels for selection via the micro dip switches.
The transmitting distance is up to 2 kilometers in the open area.
Ideal for FPV, wireless remote control aircraft, wireless remote control vehicle and so on.
Specifications:
| Wireless transmitter | |
| Model no. |
TS351 5.8G 200mW 8 channel AV transmitter |
| Modulation | Wideband FM modulation |
| Video format | NTSC / PAL |
| Output impedance | 50Ohm |
| Output power | 22dBm (21~23dBm) |
| Channel frequency |
CH1 5705/ CH2 5685/ CH3 5665/ CH4 5645 CH5 5885/ CH6 5905/ CH7 5925/ CH8 5945 MHz |
| Operating voltage | 12V (7.0-15V) |
| Supply current | 150mA |
| Operating temperature | -10 ~ +85? |
| Video band width | 8.0MHz |
| Audio carrier frequency | 6.5MHz |
| Video input level | 1.0Vp-p (0.8~1.2Vp-p) |
| Video input impedance | 75ohm |
| Audio input level | 0.5~2.0Vp-p |
| Audio input impedance | 10Kohm |
| Antenna connector | SMA |
| Product size | Approx. 5.5 * 2.6 * 1.7cm / 2.2 * 1.0 * 0.7in (No including antenna) |
| Product net weight | Approx. 25g / 0.88oz (No including antenna) |

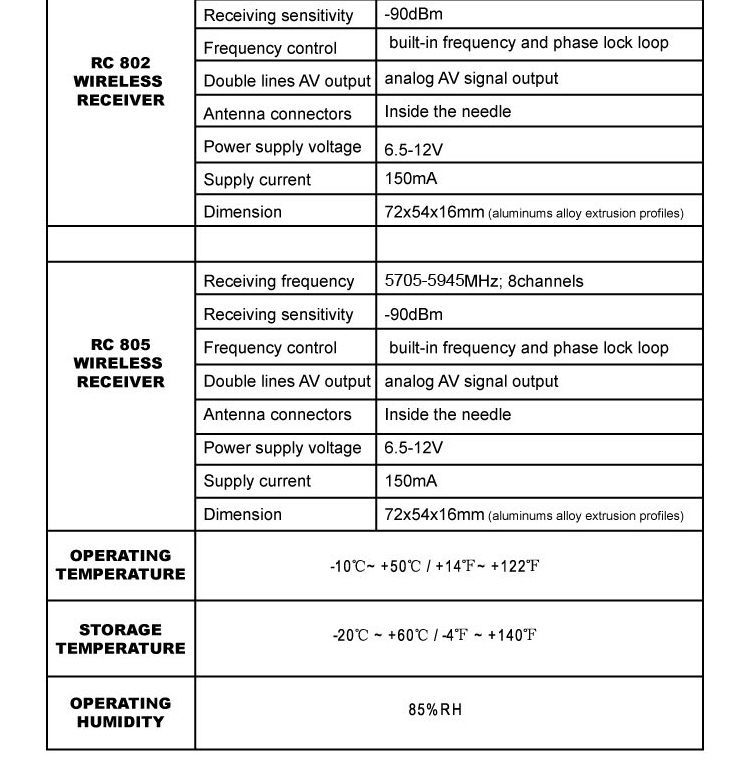

| Wireless receiver | |

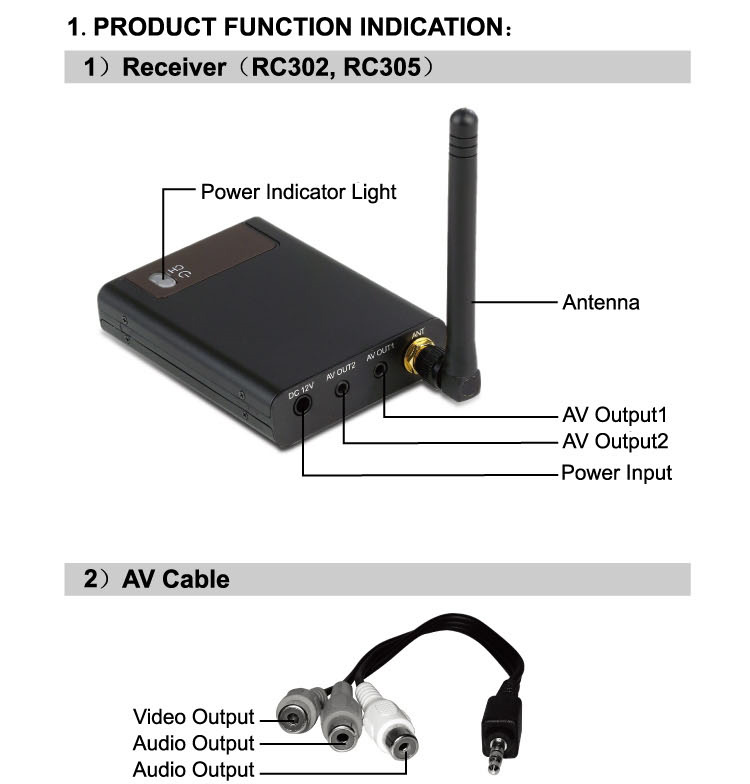

| Model no. | RC805 |
| Receiving frequency | 5725 ~ 5865MHz; 8 Channels |
| Receiving sensitivity | -90dBm |
| Frequency control | Built-in frequency and phrase lock loop |
| Double lines AV output | Analog AV signal output |
| Antenna connectors | Inside the needle |
| Power supply voltage | 6.5V ~ 12V |
| Supply current | 150mA |
| Operating temperature | -10 ~ +50? / +14 ~ +122? |
| Storage temperature | -20 ~ +60? / -4 ~ +140? |
| Operating humidity | 85% RH |
| Housing color | Black |
| Product size | Approx.7.5 * 5.4 * 1.6cm / 3.0 * 2.1 * 0.6in(No including antenna) |
| Product net weight | Approx. 42g / 1.47oz (No including antenna) |
| Total information | |
| Package size | Approx. 13.6 * 6.7 * 7.2cm / 5.4 * 2.6 * 2.8in |
| Package weight | Approx. 177g / 6.24oz |
Package List:
1 * RC805 Wireless Receiver
1 * TS351 Wireless Transmitter
2 * 2dBi Antenna
1 * Power Cable for Transmitter
1 * Power Cable for Receiver
1 * AV Cable for Transmitter
1 * AV Cable for Receiver
1 * Instruction Manual of Receiver(English)
