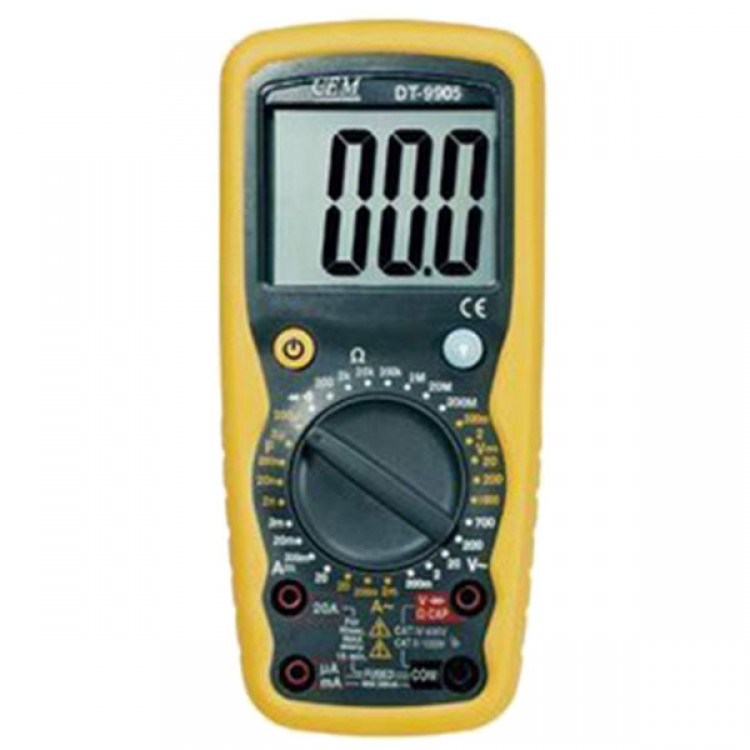

Brand CEM DT-9905 High Performance High Accuracy Digital Multi-meter 2000 counts
Description:
DT-9905 High Performance, High Accuracy Digital Multimeters
DT -9905 have double molded plastic housing and over-sized high contrast 2000 counts LCD display with back-light.
Safety Conformance
EN61010-1 CAT III 600V, CAT II 1000V
Full ranges protection
Features:
|
9905 |
9908 |
|
Digital display counts |
2000 |
2000 |
|
Safety design |
﹡ |
|
|
Data Hold |
|
﹡ |
|
Backlit Hold |
﹡ |
﹡ |
|
Logic Test |
|
﹡ |
|
Specifications:
Function |
Max. Range |
Basic Accuracy |
9905 |
9908 |
9909 |
Voltage DC |
1000V |
±0.5% |
* |
* |
* |
Voltage AC |
700V |
±1.2% |
* |
* |
* |
Current DC |
20A |
±2.5% |
* |
* |
* |
Current AC |
20A |
±3.0% |
* |
* |
* |
Resistance |
20MΩ |
±0.8% |
* |
* |
400 MΩ |
Temperature |
760℃/1400℉ |
±3.0% |
|
* |
|
Frequency |
2000Hz |
±1.5% |
|
* |
4000kHz |
Capacitance |
200μF |
±3.0% |
* |
* |
40μF |
Diode Check |
|
|
* |
* |
* |
Continuity Test |
|
|
* |
* |
* |
Logic Test |
|
|
|
|
* |
Size(H*W*D) |
182mm*82mm*55mm |
||||
Weight |
360g |
Accessories:
- Test Leads, 9V Battery, Type K temperature probe (9908), Gift Box with carrying case.
