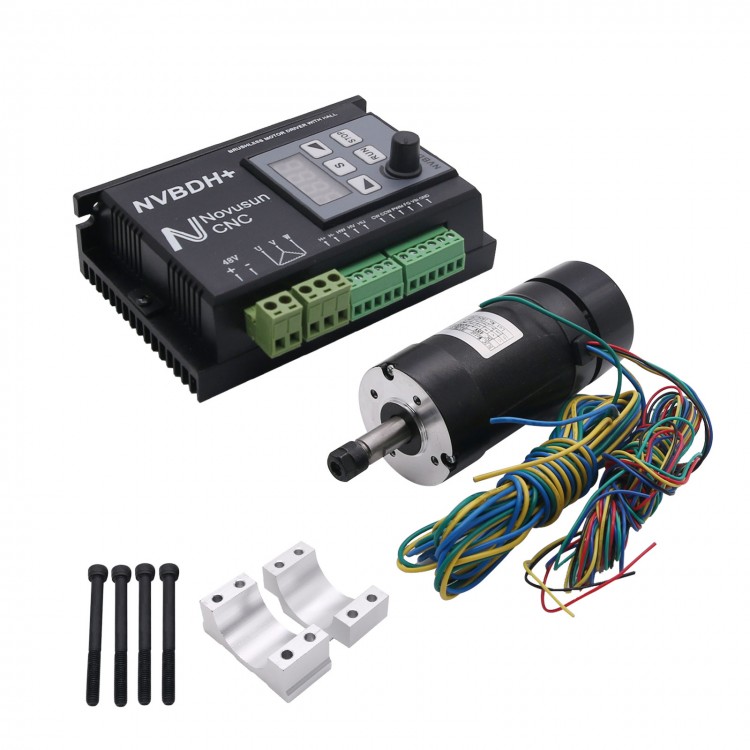

Brushless Motor Driver with Hall Controller CNC + Motor + Motor Mount for Spindle Engraving Machine NVBDH+

Availability: Out Of Stock

  • Price:$124.68
  • Price in reward points: 1247 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $122.19 $119.69 $115.95 $110.97 Contact US
Quantity:

Brushless Motor Driver with Hall Controller CNC + Motor + Motor Mount for Spindle Engraving Machine NVBDH+

NVBDH+  Instructions: Click here

Specification:
- Max. 400W power output
- DC48V input
- 3 speed adjustment modes,control panel potentiometer control, external voltage control, external PWM control
- 2 modes, control panel start stop, external IO start stop
- 12000 RPM / min maximum speed control
- M542 standard cooling shell + plastic shell
- For engraving machine, brushless DC spindle drive controller
- Control panel can be removed and installed with the user cabinet.
- 400W DC brushless spindle motor + ER8 collet

Feature

1) High performance,low prices
2) DSP main control module
3) No current passing when no movement
4) Voltage range 24VDC-60VDC
5) demountable panel
6) Maximum driver power 600W
7) 3 debugging ways:Panel potentiometer、external voltage signal、external PWM
signal
8) Maximum driver motor running speed 12000R/Min
9) Speed testing port for user to inspect the real speed.
10) Internal over-voltage, over-current and stalling inspection
11) Input signal TTL compatible
12) 400W DC Brushless Spindle Motor+ER8 Collet(Precision is higher than ER11 Collet)

NOTICE: It is integral tool bar + ER8 collet, can not be replaced with ER11 collet. And this tool bar with high accuracy.


Package List:
- 1 x Brushless Motor Driver
- 1 x Motor
- 1 x motor mount
