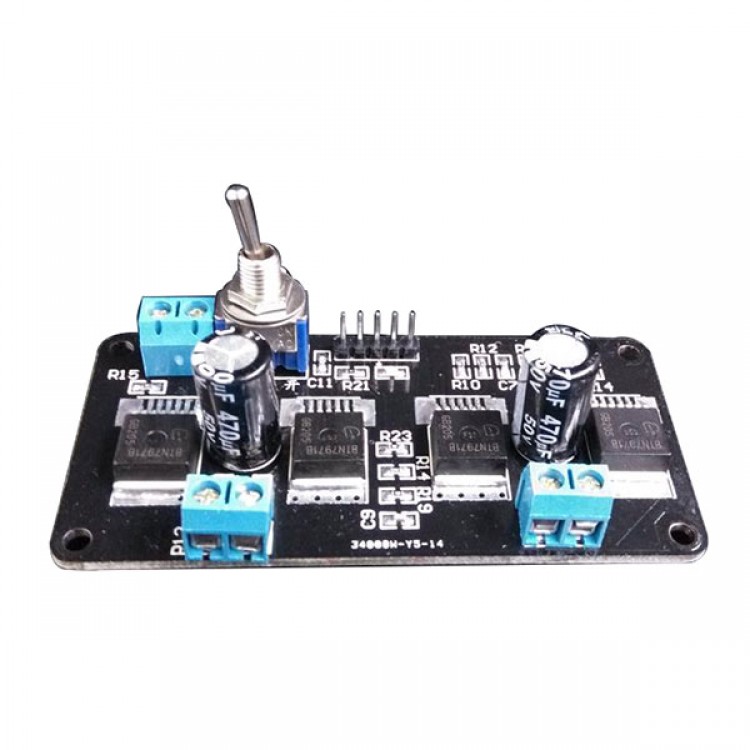

BTN7971b Motor Driving Module Dual Motor Output Driving Large Power Large Current
Description:
- Four BTN7971B large current(max 70A) H bridge driving chip
- With isolation buffer chip(can share 5V power with singlechip), can protect singlechip
- Onboard power supply indicator light
- Can be wilded on cooling fin
- Onboard motor turn around indicator, more convenient debugging
- Battery power supply driving power supply
- Battery max support 45V
- Dimension: 84*40*32mm
- Module adopts brand new imported chip
- The third generation motor driving module intergrated BTN7970, quick response, small heat radiation
5V ——> 5V power supply
P0 ——> connect with singlechip PWM output port
P1 ——> connect with singlechip PWM PWM output port
P2 ——> connect with singlechip PWM PWM output port
P3 ——> connect with singlechip PWM PWM output port
7.2V ——> connect to battery or power supply
GND ——> share ground, connect with singlechip ground
Binding post with LED connects with motor
