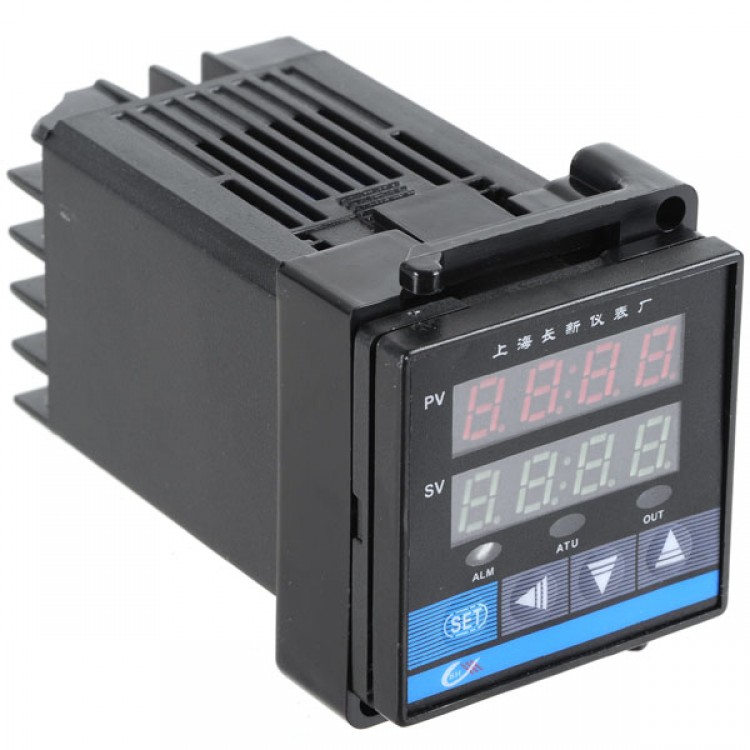

C100 Digital Temperature Controller K Type Thermocouple AC 220V Relay 48 x 48 x 90 MM

Availability: Out Of Stock

  • Price:$24.71
  • Price in reward points: 247 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $24.22 $23.72 $22.98 $21.99 Contact US
Quantity:

C100 Digital Temperature Controller K Type Thermocouple AC 220V Relay 48 x 48 x 90 MM
Specfications:
- Measuring accuracy: ±0.5%FS
- Cold-end compensation tolerance: ±2℃(can be modified by software in 0~50℃)
- Resolution: 14 bit
- Sampling cycle: 0.5 Sec

- Dimensions:48 x 48 x 90 (mm) ±0.2mm
- Process value (PV), Setting value (SV)
- Output, alarm and self-tuning can be indicated by: LED

- PIN control (including ON/OFF, step-type PID and continuous PID)
- Self-tuning control
- Relay output: contact capacity 250V AC 3A (resistive load)
- Alarm function output: 1 way
- Contact capacity of output: 250V AC 3A (resistive load)
- Setting value (SV): identical to measuring range (PV)
- Proportional band (P): 0~full range (ON/OFF control when set to 0)
- Integral time (I): 0~3600 sec (No integral action when set to 0)
- Derivative time (D): 0~3600 sec (No derivative action when set to 0)
- Heat-reset proportional cycle: 1~100 sec
- Detective temperature range:0 to 400℃
- Insulation resistance: >50M ohm(500V DC)
- Insulation resistance: 1500V AC/min
- Power Consumption: 10 VA
- Service environment: 0~50℃,
- environment with no corrosive gas 30~85% RH
