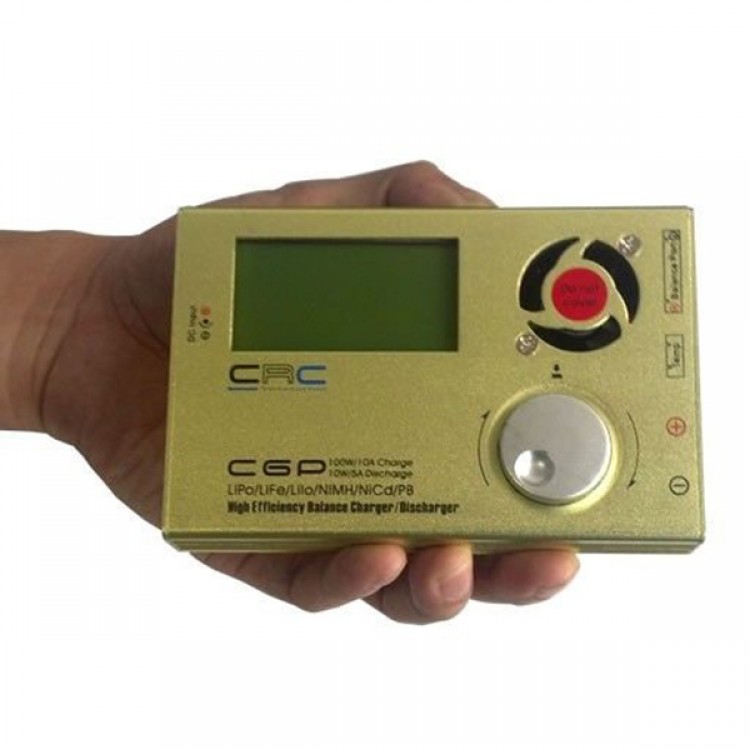

C6P 1-6S High Efficiency Lithium Battery Balance Charger Discharger w/LCD Display
- C6P is a professional and high efficiency balance charger/discharger which is especially designed for charging/discharging LiPo, LiFe, LiIo, NiMH, NiCd and PB batteries.
- High efficiency power conversion circuit. Special advanced charging technology ensure a fast and precision charging performance.
- The CRC balance charger series has a integrated cell balancer which can be especially used for charging the LiPo, Lilo, LiFe batteries.
- 10 battery profile memories, 1 default memory of latest profile, 9 custom memories can be set and load by the user.
- 128x64 pixel LCD screen shows rich information: total current, total voltage, charge capacity (mAh), charge time, temperature,cell voltage, cell voltage difference etc.
- Various functional settings can meet a wide range of use. Balance charging-auto, balance charging-manual, normal charging, storage and discharging for Lithium batteries. charging-auto, charging-manual, discharging for NiCd/NiMH batteries. Charging and discharging for Pb batteries.
- Various system settings: back light, contrast, key sound, safety time, cut off temperature, cut off capacity.
- Full protection system: protection of reversed polarity(input and output), higher/lower input voltage, battery temperature, overcharge/discharge and time limited.
- AC Input voltage: 110V-230V/50Hz
- DC input Voltage: 11-18V
- Charge current range: 0.5-10.0A
- Discharge current range: 0.5-5.0A
- Maximum charge power: 100W @ 12V DC
- Maximum discharge power: 10W
- Current drain for balancing: 400mA
- Balance accuracy: < 10mV
- LiPo/LiIo/LiFe battery cell count: 1-6 series
- NiCd/NiMH battery cell count: 1-15 series
- Pb battery cell count: 1-10 series (2-20V)
- Battery setup memories: 10
- Temperature sensor: Yes
- Weight: 235g
- Dimension(LxWxD): 122X80X25mm
- 128X64 Pixel LCD Display
- Easily control Friendly use
- High precision MCU controlled
- Special advanced technology
- High speed/precision balancing
- Prolong battery’s life
- Full safety protection
- 1* Charger
- 1* DC input cable
- 1* Charge output cable
- 1Set 2-6S parallel port adaption plate
- User manual
