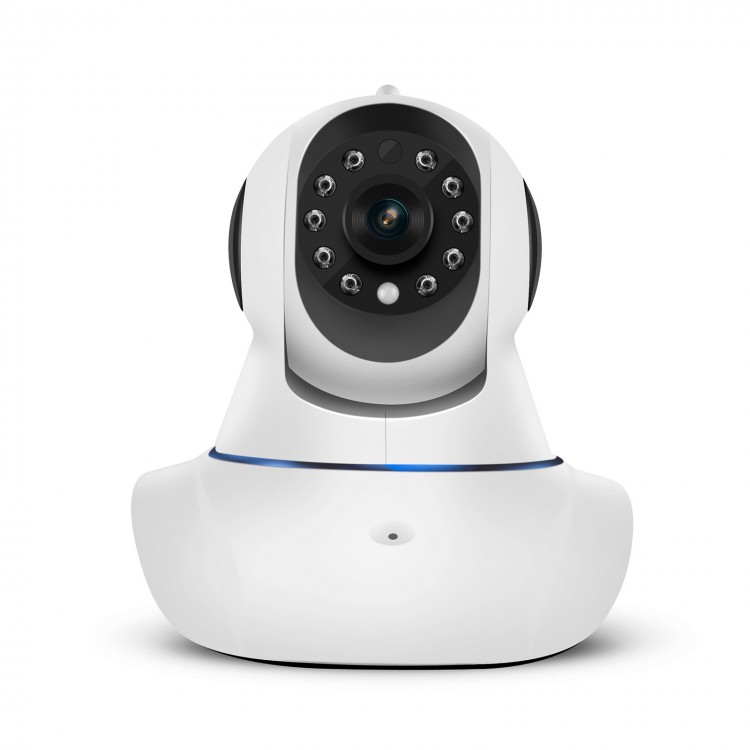

C7825WIP 720P HD Wifi IP Wireles Security Camera Pan Rotate Tilt Memory Storage IR Cut Night Vision Audio Record Indoor

C7825WIP 720P HD Wifi IP Wireles Security Camera Pan Rotate Tilt Memory Storage IR Cut Night Vision Audio Record Indoor

Product Specifications:
- Model: C7825WIP
- Features: System security: Account, password authority management
    Free DDNS: Free DDNS, supports dynamic IP.
    View by phone: Support HD pic  IOS, Android mobile view (iOS 4.3,Android OS 2.3 above)
    Local Storage: support up to 64GB MicroSD card,24-hour loop recording.
    Monitor Advantage: Support PC computer monitoring, smartphone multi-pic view.
    PnP: Plug & Play,99% penetration rate, Easy to setup:
                        1. connect the network cable and power adapter,
                        2.install APP, scan UID code to add camera.
                        3,Click online camera to view the camera.
    Sever cluster: Using Amazon Cloud PnP servier cluster, intelligent application and super stable
    UID Technology: UID scan technology applied, easy to operate, and highly confidential.
    Super Client: 1,4,9,16,25,36, 64,81-channel central management software, no user number limitation,centralized surveillance, remote record and playback, alarm email ect.
- System: OS:Embedded Linux OS
    Control protocol:ONVIF 2.4 protocol, high interoperability
    Video coding:Multi stream:720P@30fps+VGA@30fps+QVGA@30fps+720P @1fsJPEG
    Bit Rate:CBR/VBR, output bit rate range：128～4096kbps
    Processor :Hi processor, built in ARM926 @Max. 440MHz and high-speed video co-processor
- Video: Compression Format:H.264 baseline profile@levels:3.1/Motion-JPEG
    Frame rate:30fps/24fps（720p）
    Resolution:720P(1280*720), VGA, QVGA
    Picture Adjustment:Contrast, Brightness, Saturation are adjustable.
    Sensor:1/4 720p Progressive CMOS sensor
    Minimum illumination:0.8Lux/F1.(colourful model ),0.3Lux/F1.（B&W mode）
    SNR:≥39dB
    IR control :IR turned on: night vision view enabled, infrared Ray, ICR auto detect.
    IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.
    Electronic shutter:1/50s(1/60s）-1/100, 000s
    CMOS:support AWB, AGC, BLC
     Lens/viewing angle:3.6mm@F1.４/56.14˚
- Night Vision: Night vision:Dual IR-CUT Filter auto switch, 12pcs 850nmΦ5mm LED,10m IR distance
- Audio: Compression format    ADPCM/32kbps
    Input:1 Channel Line in (3.5mm phone jack) &1 Channel Internal -48dB Microphone
    Output:1 Channel Line out (3.5mm phone jack)&Internal speaker(8Ω1W)
- P/T: P/T: Pan:355°,Tilt:120°
    Preset Postion:suppor up to 15 preset postions
- Network:network interface: 10Base-T/100Base-TX Ethernet interface
    Network Protocol:TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP，P2P,onvif etc.
    wireless network security:one key wifi setup,don't need network cable .
    Online visitor:Support 4 online visitors simutaneoursly
    IP address:Dynamic IP and static IP address
    WIFI:WIFI 802.11 b/g/n
- Others: housing material:engineering plastics
    Application environment:Indoor
    Rated Voltage:DC5±0.3V
    Temperature:-10~50 °C
    Power consumption:rated power:3.5Ｗ(IR opening )/maximum power：7W(P/T working )
    Package size:195x140x130mm (L×W×H)
    Weight:Gross Weight:755g（Note: in kind prevail）
    Accessories:Power adapter, user manual, warranty card, mounting bracket, screws.
- Alarm: Motion Detection:Support motion detecting
- System Requirement: System configuration:WinXP /7/8/10,Vista,iPhone iOS4.3,The android version 2.3 or higher
- Certificate:Certificate: ISO FCC CE RoHS;Only for reference

Package List:
- 1 x C7825WIP IP Camera
- 1 x Brackets
- 1 x Power supply
- 1 x Instuctions
- 4 x Screw
