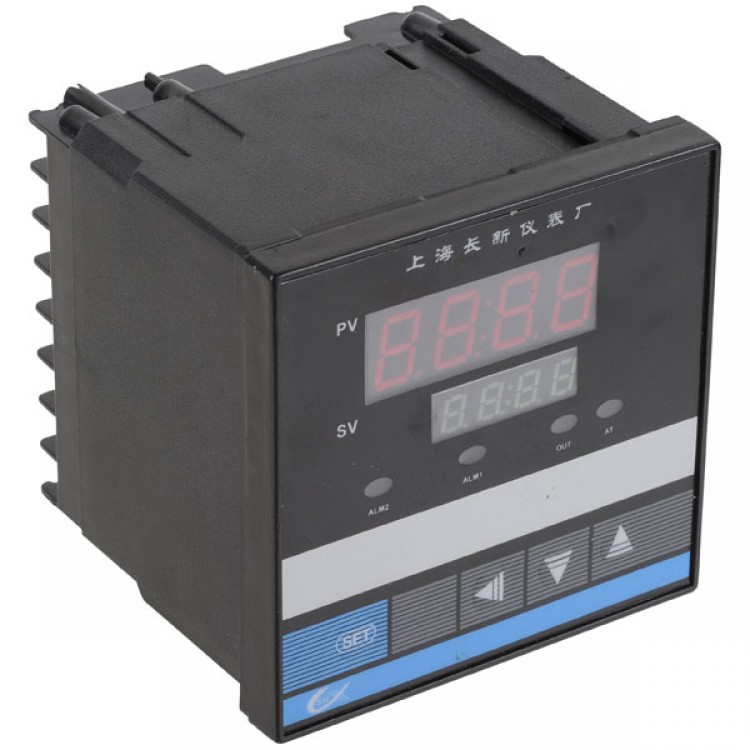

C900 Digital PID Temperature Controller Control AC 220V SSR

Availability: Out Of Stock

  • Price:$25.60
  • Price in reward points: 256 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $25.09 $24.58 $23.81 $22.78 Contact US
Quantity:

C900 Digital PID Temperature Controller Control AC 220V SSR
Description:
- The product is the new temperature controller, can carry out high precision control and using large LED display, suitable for long distance read, and easy to monitor temperature status
Apply with step control, 2 independent PID control for heating/cooling over temperature, pressure, level, flown, etc.. Widely used in auto system in line of light industry, chemistry, machine, metallurgy, ceramics, petrification industry, or temperature control and adjust system of food &beverage; oven; furnance, plastic extruder heating process etc
PID control is mostly used in places requiring high temperature control performance, it has related best parameters like proportion band (P), integral time (I) and differential time (D) for different controlled target, for traditional PID meter, the above parameters shall be set by experienced expert, or the whole system may be out of control due to unmatched parameters, which brings trouble to customer, but for this meter, as it has self-setting function, and it can simulate operation of expert to search automatically for the best parameter according to different controlled target

Technical Norm:
-  Measuring error: 1% ±1 character, 0.5% ±1 character, 0.2% ±1 character
Supplementary cold end compensation error: ≤±2℃ for 0~50℃ range with temperature coefficient of ≤0.05%℃
- Measuring digits display range: -1999~9999, -199~9999
- Alarm range: Free set for full range
- Output contact capacity of relay: 3A/220V, resistive or specified
- Trigger signal of controlled silicon: 5V/40μ S or 100mA rated current, 1A instantaneous current (self-triggering)
- Output signal of solid state relay: 15±3V/30mA
- Operating power supply: 220V~10% 50Hz, power consumption: 4W
- Operating environment: 0~50℃, 35%~85%RH (relative humidity), no corrosive medium and no strong radiation of electromagnetic field

- Model: C900
- Range: 0-400℃
- Input: K
- Output: SSR
- Supply: 220V, 50/60Hz
- Size: 11.2cm x 9.5cm x 9.5cm
Package includes:
- Temperature Controller  x 1
- Chinese User Manual  x 1
