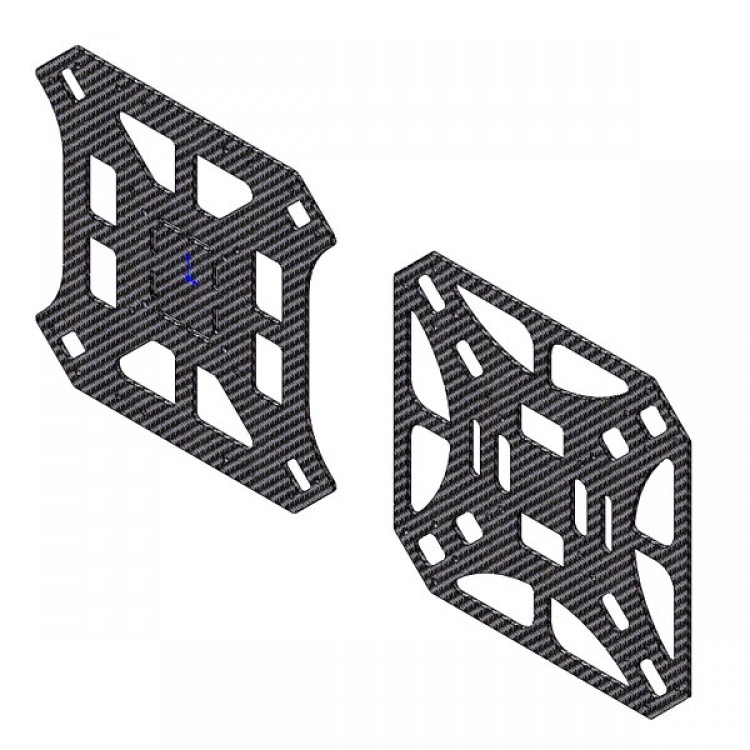

Carbon Fiber Center Board Base Board for DJI Multicopter Designed for Wookong
Descriptions:
- this is a upgrade version of DJI center board,support KK,MK,AQ50D PRO,Rabbit Controller
- Special design for Wookong,reserves mounting hole for wookong
- the Shaft distance up to 530mm after DJI multicopter assembled, can install 12 inch propellers directly
- With 3608,4008 motor mounting board,the length of the wheelbase can up to 600mm, enough to compatible 14inch propeller
- Compatible with Xaircraft landing gear,also can assembled in the same way
- Adopts high quality 3K Twill Carbon fiber (2mm thickness)

* Also can be replace other multicopter,it is depends on to distinguish if it is suitable for your multicopter

Suggestions of Wookong installation:
 - Lower base board,place controller in horizontal direction,put IMU in the middle of the center board,led light can be placed in the buttom of the baseboard
- Upper Base board:used to place GPS or battery

- Size:214mm*167mm
- Reserved a lot of fasten hole which can be connect via plastic tube.
- Can Protect Wookong efficiently
Package including:

- 1 set Center board(lower base board and upper baseboard)
