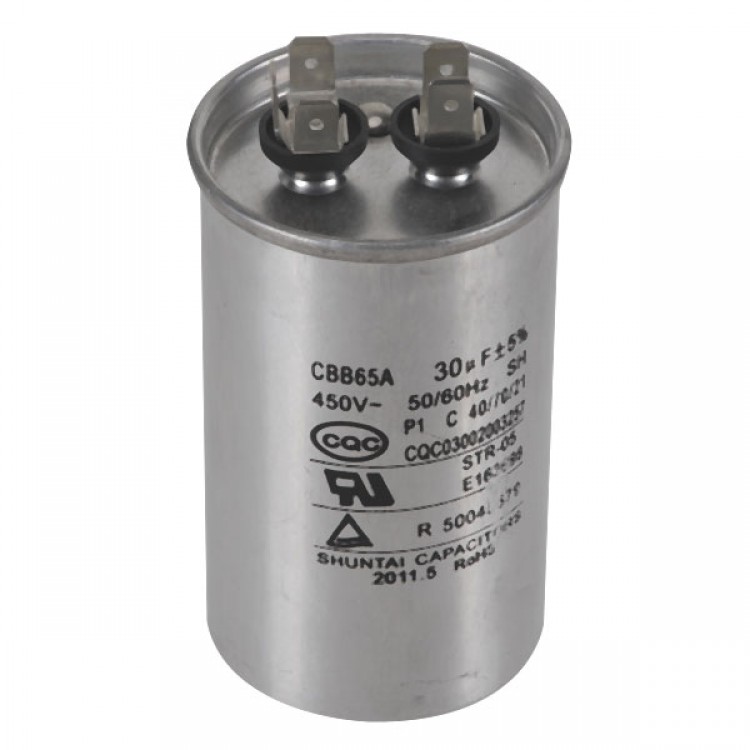

CBB65A 10/15/20/25//30uf 450V Air Conditioner Capacitor 50/60Hz CLASS A Capacitor
  • CBB65A 10/15/20/25//30uf 450V Air Conditioner Capacitor 50/60Hz CLASS A Capacitor
  • CBB65A 10/15/20/25//30uf 450V Air Conditioner Capacitor 50/60Hz CLASS A Capacitor
  • CBB65A 10/15/20/25//30uf 450V Air Conditioner Capacitor 50/60Hz CLASS A Capacitor

  • SKU:23095
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 1
  • Price:$8.25
  • Price in reward points: 83
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $8.09 $7.92 $7.67 $7.34 Contact US

CBB65A 10/15/20/25//30uf 450V Air Conditioner Capacitor 50/60Hz CLASS A Capacitor
Features:
- Very small dissipation factor, small internal temperature rise.
- High insolation resistance.
- Good capacitance stability.
- Excellent self-healing property.
- Anti-shock current, large overload capacity.
- Small volume, light weight.
- Equipped with a pressure explosion-proof apparatus for safe and reliable usage.

Pls Choose the uf Value of 10uF,15uF,20uF,25uF,30uF

Structure:
- Metal case enclosure and flame retardant epoxy resin end fill.
- Terminal from: Terminal from: 250# soldering flat pieces or copper wire coated with tin and so on.

Applications:
- Products are applied to household electric appliance such as washing machines, and airconditioners which demand 50~60Hz Ac power supply with safety protection construction.

Specifications:

product name:

CBB65 metallized film capacitors

product type:

polypropylene film capacitor

Capacitance:

1-150uf

capacitance tolerance

±3% or ±5%

Rated Voltage:

110V-750VAC

Operating Temperature:

-25~70°C or -40~105°C

Climate type:

25/70/21 or 40/105/21

Application:

AC motor, air conditioner, lighting, washing machine, water pump and generator.

Safety Class:

P0, P1, P2.

Certificate:

ISO9001, ROHS, SGS, UL, CSA

the Leader type:

250# soldering flat pieces or copper wire coated with tin and so on.

Material:

Aluminum
