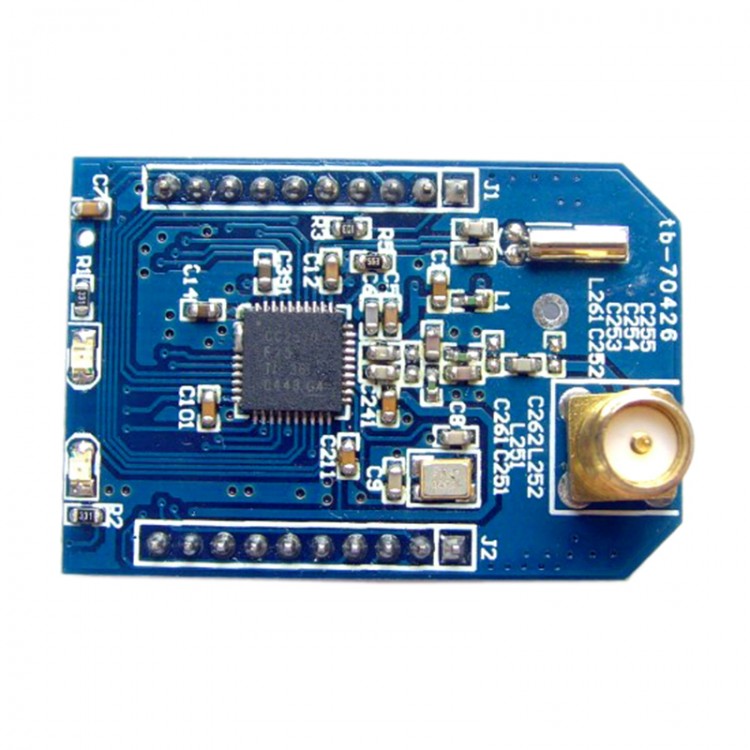

CC2530 ZigBee Wireless Module with SMA Antenna
Description:
1. Onboard CC2530F256ZigBee core chip
2. 2.0 V-3.6V pin of power supply
3. Onboard gold-plated SMA interface
4. Onboard 32.768 KHz crystals and 32 MHZ patch crystals
5. The commonly used IO pin already all led, convenient for external extension and using
6. Advanced carrier monitoring technology, effectively prevent the network clashed
7. Standard configuration with 16 channel, can meet the user a variety of communicated combination
8. The size of the PCB: 38mmx26mm
9. Application range: wireless sensor network, building home automation, industrial monitoring, PC peripherals, consumer electronics and other fields
Package included:
- 1xCC2530 ZigBee Wireless Module
- 1x SMA Antenna
