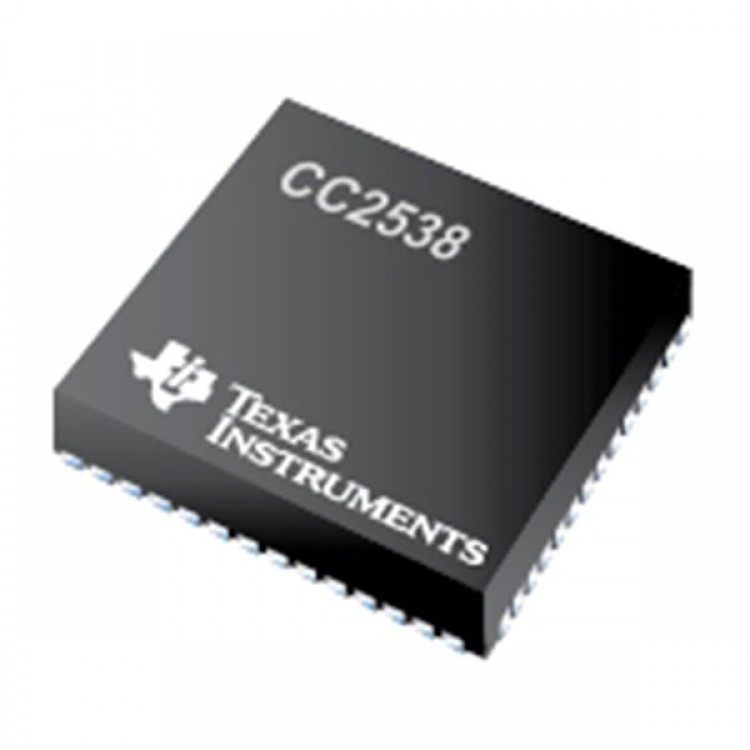

CC2538SF53RTQR CC2538SF53RTQT:System-On-Chip 2.4-GHz ZigBee

CC2538SF53RTQR CC2538SF53RTQT:System-On-Chip 2.4-GHz ZigBee

Features
Microcontroller
- Powerful ARM Cortex M3 With Code Prefetch
- Up to 32 MHz Clock Speed
- 512-kB, 256-kB or 128-kB In-System-Programmable Flash
- Supports On-Chip Over-the-Air Upgrade (OTA)
- Supports Dual ZigBee Application Profiles
- Up to 32-kB RAM (16-kB With Retention in All Power Modes)
- cJTAG and JTAG Debugging

RF
- 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver
- Excellent Receiver Sensitivity of –97 dBm
- Robustness to Interference With ACR of 44 dB
- Programmable Output Power Up to 7 dBm
- Security Hardware Acceleration
- Future Proof AES-128/256, SHA2 Hardware Encryption Engine
- Optional – ECC-128/256, RSA Hardware Acceration Engine
- for Secure Key Exchange
- Radio Command Strobe Processor and Packet Handling Processor for
- Low-Level MAC Functionality
- Low Power
- Active-Mode RX (CPU Idle): 20 mA
- Active-Mode TX at 0 dBm (CPU Idle): 24 mA
- Power Mode 1 (4-μs Wake-Up, 32 kB RAM retention, full
- register retention): 0.6 mA
- Power Mode 2 (Sleep Timer Running, 16-kB RAM
- Retention, Configuration Register Retention): 1.3 μA
- Power Mode 3 (External Interrupts, 16-kB RAM Retention,
- Configuration Register Retention): 0.4 μA
- Wide Supply-Voltage Range (2 V–3.6 V)

Peripherals
- μDMA
- 4 × General-Purpose Timers (Each 32-Bit or 2 × 16-Bit)
- 32-Bit 32-kHz Sleep Timer
- 12-Bit ADC With 8 Channels and Configurable Resolution
- Battery Monitor and Temperature Sensor
- USB 2.0 Full-Speed Device (12 Mbps)
- 2 × SPI
- 2 × UART
- I2C
- 32 General-Purpose I/O Pins
- (28 × 4 mA, 4 × 20 mA)
- Watchdog Timer

Layout
- 8-mm × 8-mm QFN56 Package
- Robust Device for Industrial Operation up to 125°C
- Few External Components
- Only a Single Crystal Needed for Asynchronous Networks
- Development Tools
- CC2538 Development Kit
- Reference Design Certified Under FCC and ETSI Regulations
- Full Software Support for ZigBee Smart Energy 1.x,
- ZigBee Smart Energy 2.0, ZigBee Light Link and ZigBee
- Home Automation With Sample Applications and Reference
- Designs Available
- Code Composer Studio
- IAR Embedded Workbench for ARM
- SmartRF Studio
- SmartRF™ Flash Programmer
