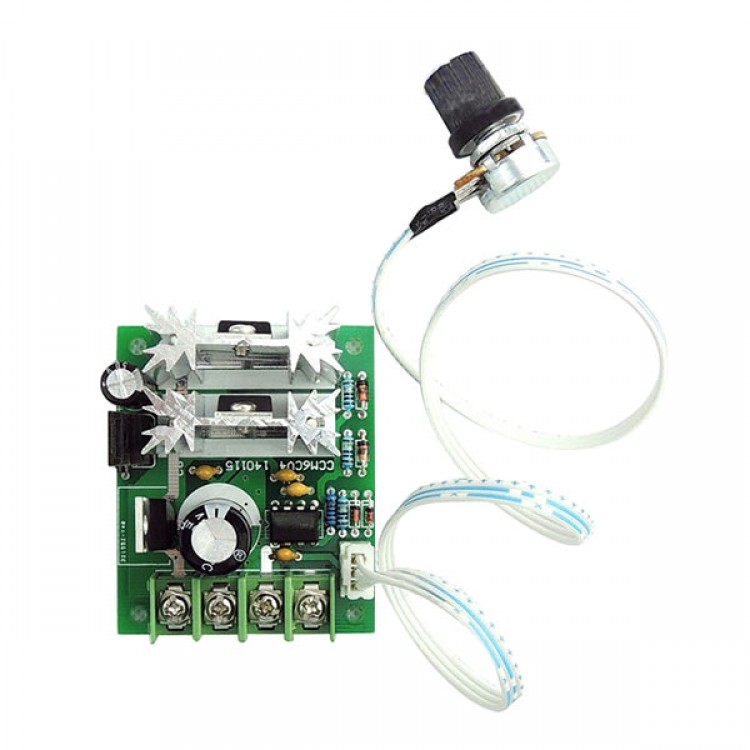

• CCM6C 6V-30V DC Motor Speed Controller Regulator Pump PWM Non-Polar Regulator Switch Large Power Driver Board

CCM6C 6V-30V DC Motor Speed Controller Regulator Pump PWM Non-Polar Regulator Switch Large Power Driver Board

Availability: In stock, usually dispatched in 1 business day

  • Price:$7.06
  • Price in reward points: 71 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $6.92 $6.78 $6.57 $6.28 Contact US
Quantity:

CCM6C 6V-30V DC Motor Speed Controller Regulator Pump PWM Non-Polar Regulator Switch Large Power Driver Board

Description:

- The length of speed control rotation button is lengthened to 40cm
- Adopting 11 core electronic wire, more durable

CCM6C technical parameter:
- Input DC power or battery, the voltage value should be equal to rated voltage
- Dual MOS tube means larger heat radiation area, smaller resistance, we adopting two 0.007ohm MOS tubes
- Max continuous current is 20A, recommend within 10A
- PMW output range: 5%-100%, and 99% motor can be mediated
- Frequency: 21khz
- Dimension: 60*50*28mm
- Positioning hole dia: 3.2mm
- Weight: 65g
