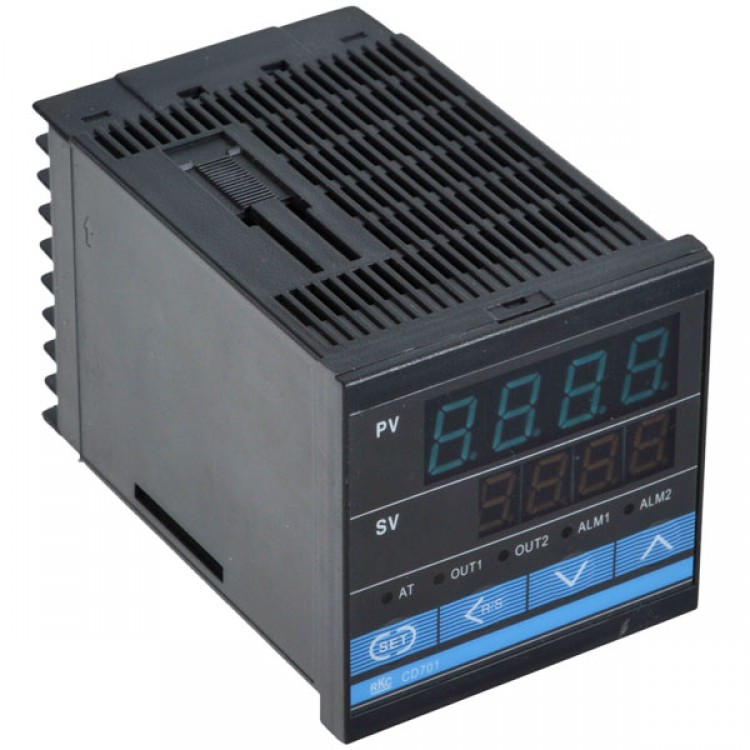

CD701 Digital Intelligent Universal Temperature Controller
Detailed Specifications
Intelligent temperature controller (digital temperature controller) specifications
Accuracy |
±0.2% of full scale |
|
Measuring ranges |
-199.9 to 1800 degree Celsius |
|
Resolution |
±1digit |
|
Supply voltage |
85 to 264Vac, 50/60 Hz |
|
Input types |
Thermocouple |
K, J, E, S, N, T, B, R, WRe |
Resistive thermal detector |
Cu50, Pt100 |
|
Voltage |
0 to 5V, 1 to 5V, 0 to 20mV, 0 to 75mV, 0 to 200mV |
|
Current |
0 to 10mA , 4 to 20mA |
|
Output options |
Mechanical Relay, SSR, Current, Voltage, Pulse |
|
Power consumption |
Less than 5 VA |
|
Control algorithms options |
P, PI, PD, PID, or on/off |
|
Alarms |
Upper limit alarm, lower limit alarm |
|
Working temperature |
0 to 50 °C (32 to 122 °F) |
|
Working humidity |
85% RH max, non-condensing |
|
External dimensions |
72*72*100 (mm) |
