• CDJ2KB 10x15-B 10mm Bore 15mm Stroke Stainless Steel Mini Pneumatic Air Cylinder
  • CDJ2KB 10x15-B 10mm Bore 15mm Stroke Stainless Steel Mini Pneumatic Air Cylinder
  • CDJ2KB 10x15-B 10mm Bore 15mm Stroke Stainless Steel Mini Pneumatic Air Cylinder

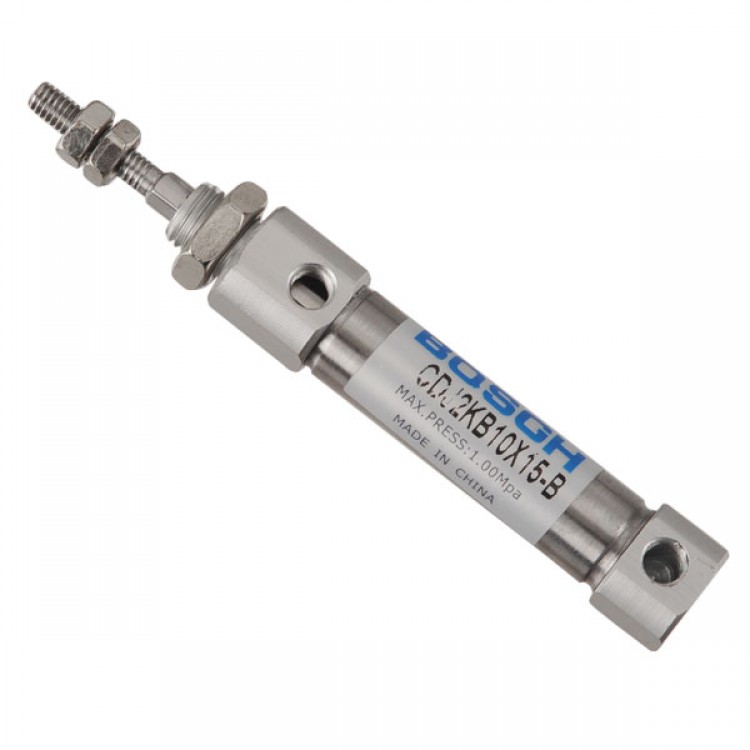

CDJ2KB 10x15-B 10mm Bore 15mm Stroke Stainless Steel Mini Pneumatic Air Cylinder

Availability: Out Of Stock

  • Price:$8.25
  • Price in reward points: 83 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $8.09 $7.92 $7.67 $7.34 Contact US
Quantity:

CDJ2KB 10x15-B 10mm Bore 15mm Stroke Stainless Steel Mini Pneumatic Air Cylinder
Specfications:
- SMC standard Mini cylinder CJ2 series cylinder.
- Cylinder Tube: Stainless Steel
- Normal Bore Size: 10mm
- Normal Stroke Size: 15mm
- Adjustable Cushion: With or without
- Magnet and Sensor: With or without
- Acting Type: Double acting (normal)
- Proof Pressure: 1.35MPa
- Max Operating Pressure: 1MPa
- Min Operating pressure: 0.05MPa
- Temperature: 0C~70C
- Oil: No need
- Fixing Type: Basic, LB, Y, I, Bearing type, Floating type

Note:

CDJ2B-S single action cylinder
CDJ2KB--with non-rotated piston rod
CDJ2D--with double U hook at the end
