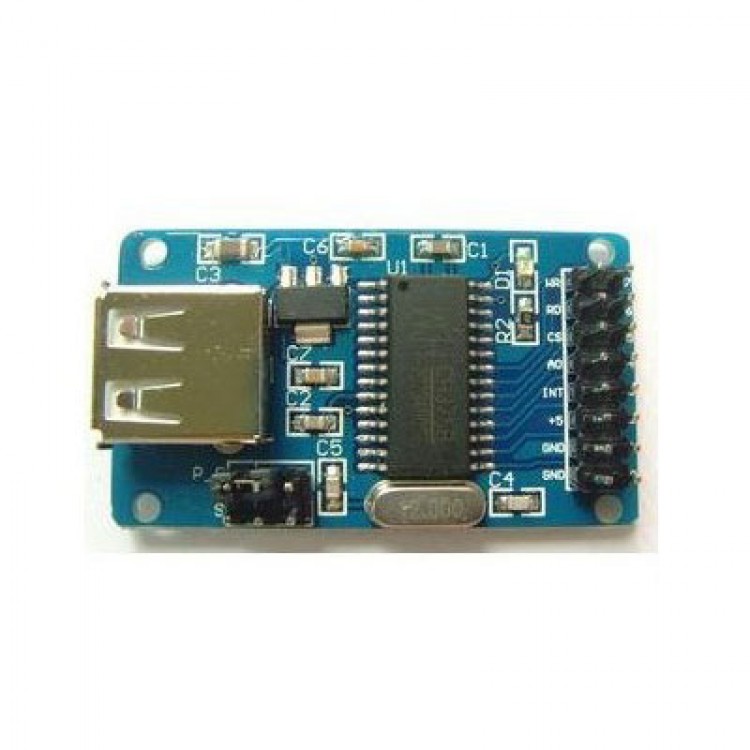

CH375B USB Module Adapter for MCU / DSP / MPU
Description:
- CH375 is a USB bus universal interface chip, supports USB-HOST Mode and USB-DEVICE/SLAVE Mode. There are 8-bit data bus and read, write, chip select control wire and interrupt output in CH375.It is convenient to link CH375 to control system bus of MCU/DSP/MPU.CH375 also provides serial communication in USB-HOST mode. It connects with DSP/MCU/MPU through serial input, output and interrupt output.
Feature:
- 2 x8 socket, can be easily connected with the MCU
- according to the jumper selection, can work in parallel or serial mode
- USB status lights
-  onboard 3.3V 1117, the Max current is  800mA
- 5 V power supply from the target
- 12 MHZ cystal
