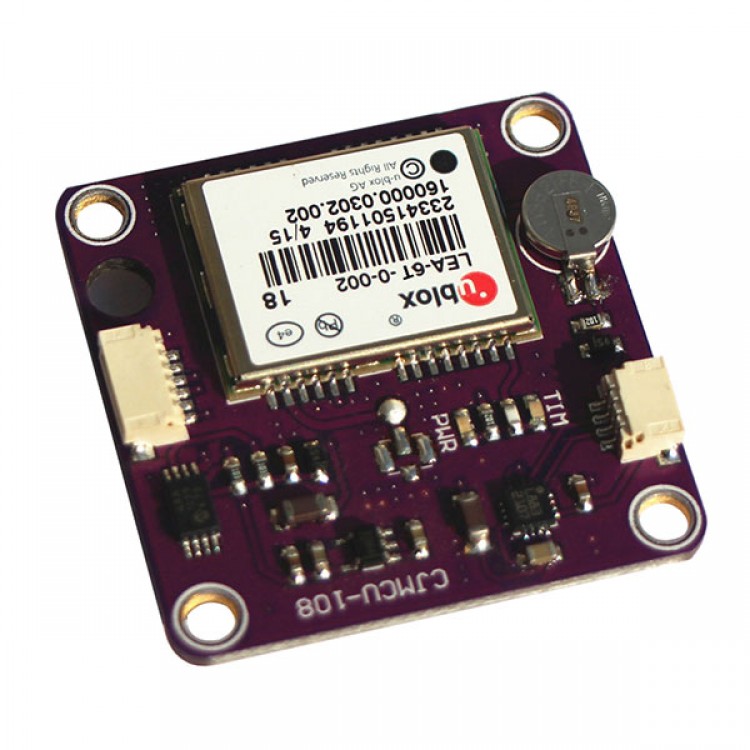

CJMCU-108 UBlox LEA-6T GPS Module for RC APM Pix Flight Controller DIY

CJMCU-108 UBlox LEA-6T GPS Module for RC APM Pix Flight Controller DIY

Highlights:
- Precision Timing:
  1 or 2 timepulse outputs (up to 10 MHz)
  Single-satellite operation
  Stationary (survey-in) mode for enhanced timing accuracy
  Time mark of external event inputs
- Raw pseudo-range data output
- UART, USB and DDC (I2C compliant) interfaces
- Onboard RTC Crystal for faster warm and hot starts

Features:
- u-blox 6 position engine:
  Navigate down to –162 dBm and –148 dBm coldstart
  Faster acquisition with AssistNow Autonomous
  Hybrid GPS/SBAS engine (WAAS, EGNOS, MSAS)
  Anti-jamming technology
- Simple integration with u-blox wireless modules
- A-GPS: AssistNow Online and AssistNow Offline services, OMA
- SUPL compliant
- Backward compatible (hardware and firmware); easy migration from LEA-5T or LEA-4T (LEA-6T)
- LCC package for reliable and cost effective manufacturing
- Optional upgradeable Firmware support
- Compatible with u-blox GPS Solution for Android
- Based on GPS chips qualified according to AEC-Q100
- Manufactured in ISO/TS 16949 certified production sites
- Qualified according to ISO 16750

Receiver Performance Data:
-Receiver type: 50-channel u-blox 6 engine; GPS L1 C/A code; SBAS: WAAS, EGNOS, MSAS
- Navigation update rate up to 5 Hz (2 Hz for LEA-6T-1)
- Accuracy: Position: 2.5 m CEP; SBAS: 2.0 m CEP
- Acquisition: Cold starts: 26 s; Aided starts: 1 s; Hot starts: 1s
- Sensitivity: Tracking: –162 dBm; Cold starts:  –148 dBm; Hot starts: -157 dBm
