• CJMCU-1110 ADS1110 16-Bit A / D Converter Self-Calibration A / D IIC Communication Module 2-Pack

CJMCU-1110 ADS1110 16-Bit A / D Converter Self-Calibration A / D IIC Communication Module 2-Pack

Availability: In stock, usually dispatched in 1 business day

  • Price:$9.20
  • Price in reward points: 92 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $9.02 $8.83 $8.56 $8.19 Contact US
Quantity:
  This product has a minimum quantity of 2

CJMCU-1110 ADS1110 16-Bit A / D Converter Self-Calibration A / D IIC Communication Module 2-Pack

Description:

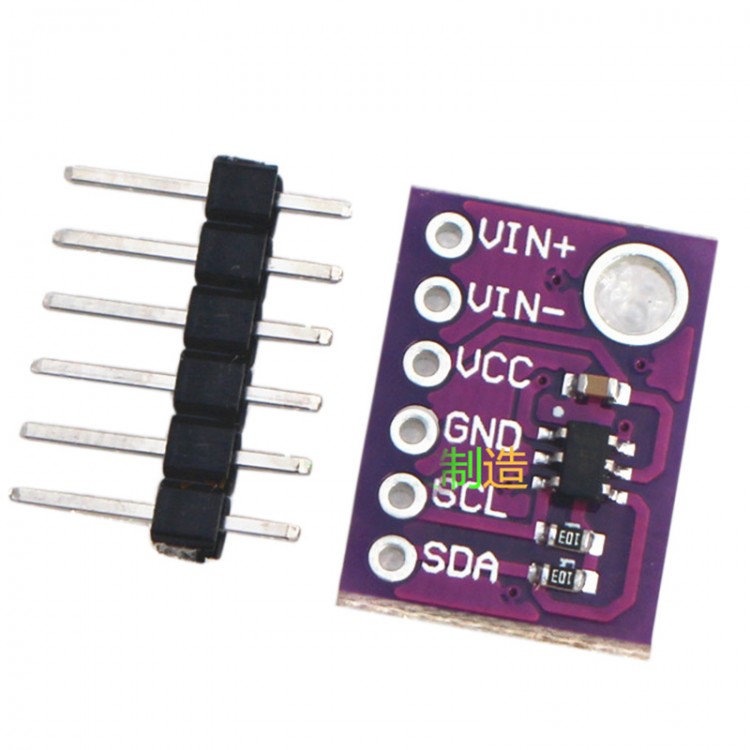

CJMCU-1110 is a continuous self-calibration precision analog / digital A / D converter with differential inputs and up to 16 bits of resolution within a small SOT23-6 package-chip 2.048V reference voltage provided to the input differential voltage range of 2.048V , ADS1110 use I2C compatible serial interface 2.7V to 5.5V single supply. ADS1110 can sample 153 060 or 240 times per second in order to carry out internal conversion chip programmable gain amplifier PGA provides up to eight times the gain and allow high resolution measurements of small signals in single conversion mode ADS1110 in after a switch to automatically power down during idle periods greatly reduces the current consumption. ADS1110 applications requiring high-resolution measurement applications are designed in such a space, and power consumption is a problem typical application of the primary consideration include portable instrumentation for industrial process control and a small transmitter.

Package Included:
- 2 x CJMCU-1110 ADS1110 IIC Communication Module
