Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $8.85 | $8.67 | $8.40 | $8.04 | Contact US |

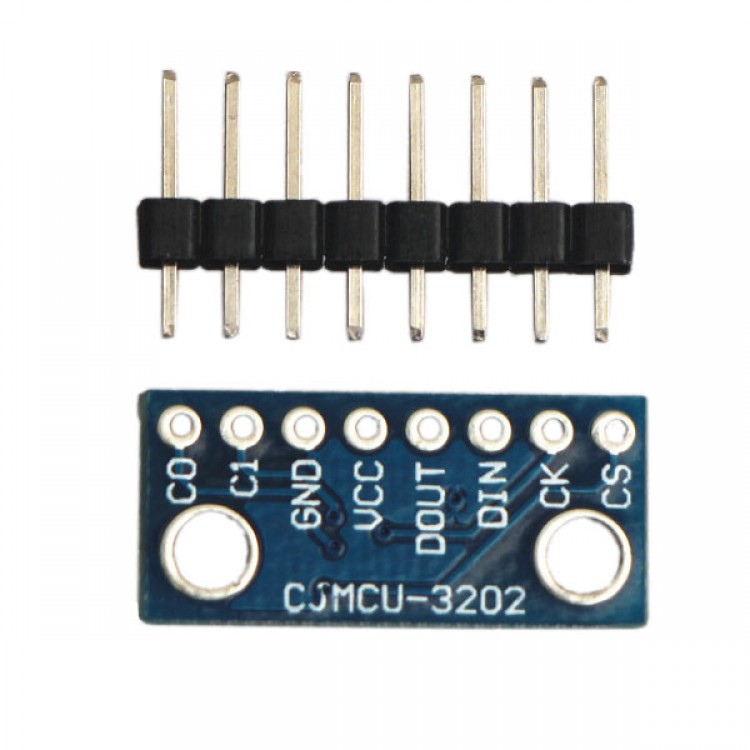

CJMCU 3202 MCP3202 Dual Channel 12 Bits A/D Convertor SPI Serial Interface Develop Board
Features:
- 12 bits resolution rate
- ±1 LSB DNl (max)
- ±1 LSB INL (max) (MCP3202-B)
- ±2 LSB INL (max) (MCP3202-C)
- Analog input can be programmed as single end input or pseudo differential inputs, taking samples and maintaining circuit
- SPI serial interface (mode 0, 0 and 1, 1)
- Single power supply voltage range: 2.7V--5.5V
- When VDD=5V, max sampling rate is 100ksps
- When VDD=2.7V, max sampling rate is 50ksps
- Low consumption CMOS technology: -500nA typical standby current, max 5uA-5A, working current max value can reach 550uA
- Industrial level temperature range: -40----85 degree
