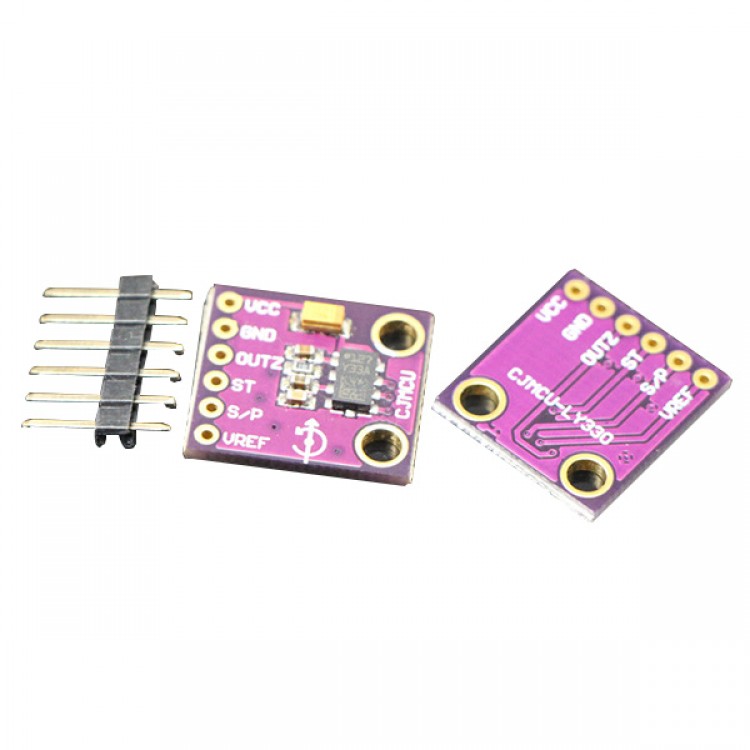

CJMCU-330 LY330ALH ST Single Axis Yaw Gyro High Precision Single Axis Angular Velocity Sensor
Description:
- Model: CJMCU-330
- LY330ALH ST single axis yaw gyroscope
Introduction:
- LY330ALH is a single axis micromachined gyroscope of high performance and low power consumption, it can measure angular rate sensor along the yaw axis.
- Excellent temperature stability and high resolution of working temperature range (-40 ° C to +85 ° C) LY330ALH has a full scale of ± 300 DPS, can reach 140Hz detecting rate when cooperating with -3dB
- The device includes a single drive block consisted of a sensor component. When applicate the angular velocity, it can maintain continuous oscillating reaction based on the principle of Coriolis
- through analog output voltage, a CMOS IC that is used for measuring angular rate can cooperate better with sensor component
Features:
- 2.7 V to 3.6 V single supply operation
- Wide operating temperature range (-40 ° C to +85 ° C)
- Working stable in high temperature
- Simulated absolute angular rate output
- Integrated low-pass filter
- Low power consumption
- Sleep mode
- Built-in power supply
- Built in self test
- High capability of anti-shock or anti-vibration
- ECOPACK@ RoHS and "green" standard
