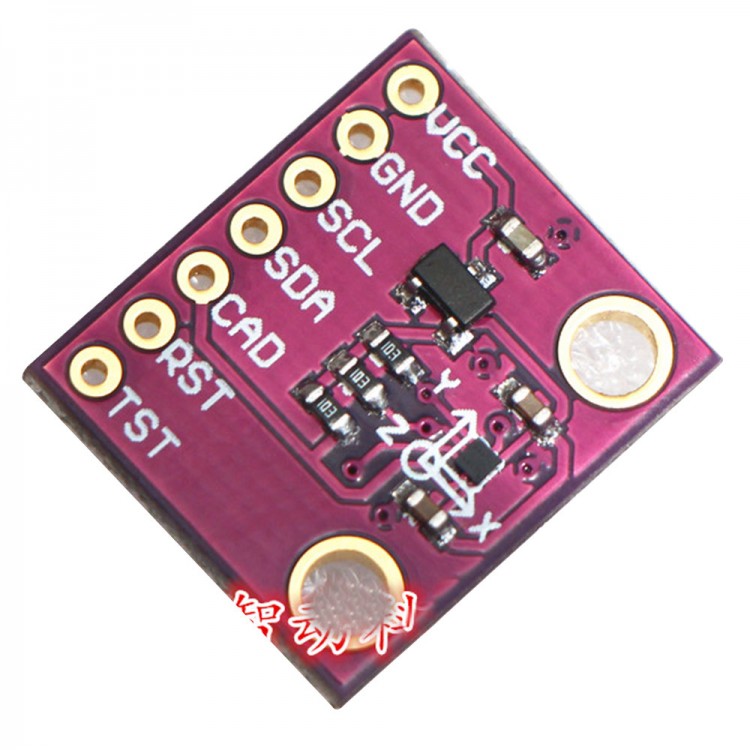

CJMCU-9911 AK09911C Hall Sensor 3-Axis Compass Magnetometer Magnetic Field Module
Description:
This module is suitable for mobile phones and other portable devices navigation.
Function:
- 3 axis magnetometer device for compass application
- Built-in ADC magnetometer data
- 14 bit data for each 3 axis magnetic element
- Sensitivity: 0.6 T / LSB (typical value
- Serial interface I2C bus interface
- Standard, fast and high speed mode (2.5 MHz) compatible with PHILPS I2C specification version 2.1.
Operation mode
- Power down, single measurement, continuous measurement, self test and fuse ROM access
- Preparation of data for measurement of functional data ready for use
- Magnetic sensor overflow monitoring function
- Built in internal clock oscillator
- Power on reset circuit
- Internal magnetic source of self checking function
Package List:
- 1 x Module
