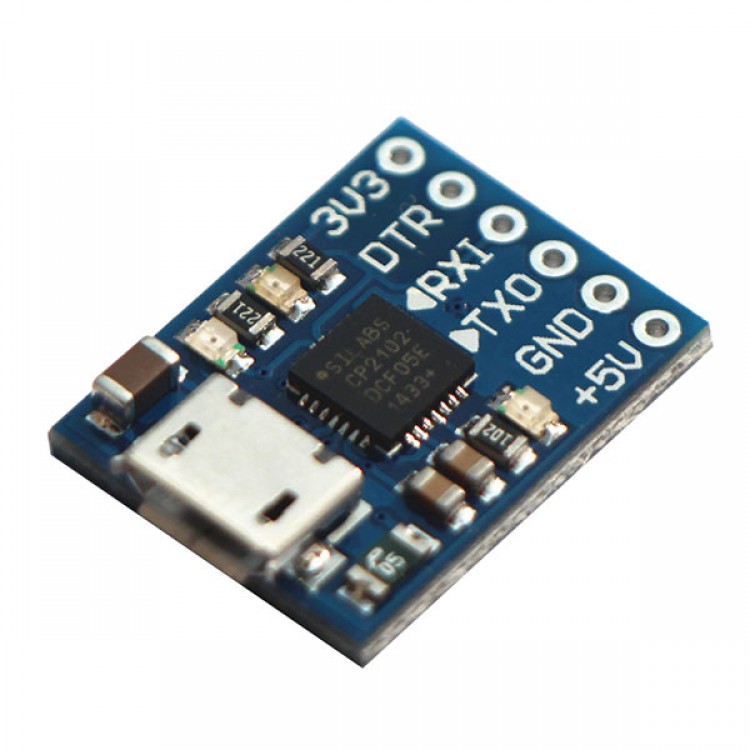

CJMCU-arduino CP2102 mODULE USB TO TTL USB to Serial Port UART STC Downloder
Module description:
- original CP2102 chip, generate the COM after install the driver.
- standard MICRO MINI - USB line input by computer USB interface, with 3.3 V and 5 V voltage output power
- with self recovery fuse. In the case of accidental short circuit, which can effectively protect your downloader and computer USB port
- onboard status indicator lights, lights, right after install the driver state will normally on lights, transceiver indicator light will flash, when communication with LED lights.
- support from 300bps~1Mbps baud rate
- communication format support: 1) 5,6,7,8 bits of data; 2) support 1,1.5, 2 stop bits. 3) odd, even, mark, space, none
- support operating system: Windows vista/xp / 98/8.1/7, Mac OS X/OS - 9, Linux 8, USB interface for MICRO MINI USB 9, SMD components welding for formal company, stable quality, beautiful appearance
=- with DTR trigger signal output, can be directly to the arduino pro mini ATMEGA328P arduino mainboard download program communication, etc.
