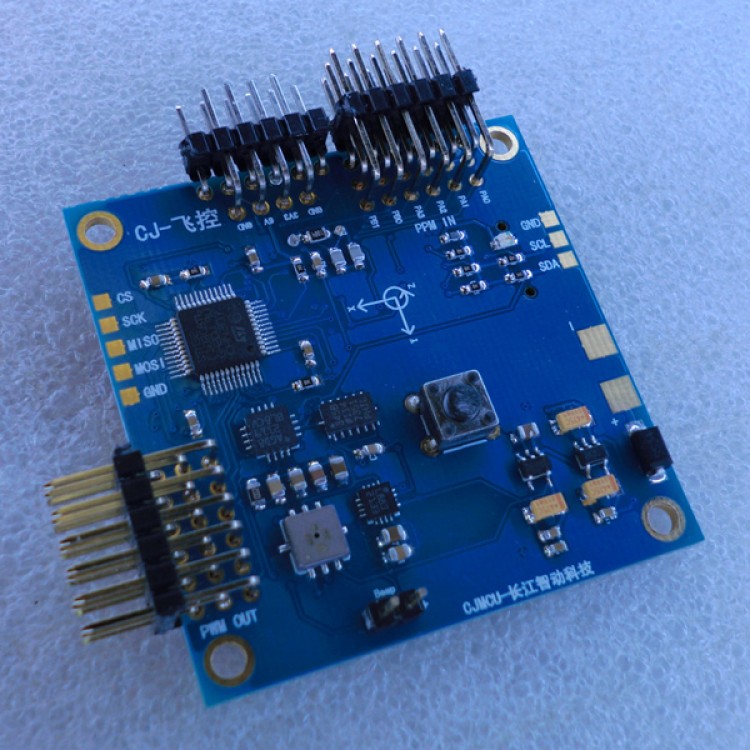

CJMCU Flight Control Board V2.1 STM32 10DOF 9-Axis Gyro Acceleration Barometric

Description:
- 10DOF 9-Axis Gyro Acceleration Barometric Module based on STM32 single chip
- Chip:STM32F103C8T6+L3G4200D+ADXL345+HMC5883L+BMP085
- board size:50mmX50mm
- Hole distance:45mm
- Adopts high quality PCB
- STM32F103C8T6:72MHz Frequency,64KB FLASH,20KB RAM 32 bits Single chip
- MCU& IMU intergartion
- Input voltage: 5~18V
- 6 Channel PPM,PWM input
- 6  Channel PWM Output
- Jtag/SWD (need a converter board) and Serial port download method optional
- IIC,SPI2,USART port lead out
- On-board buzzer module,with low voltage alarm and operating indicator
- support MicroSD Card(TF Card)
- with rest button
